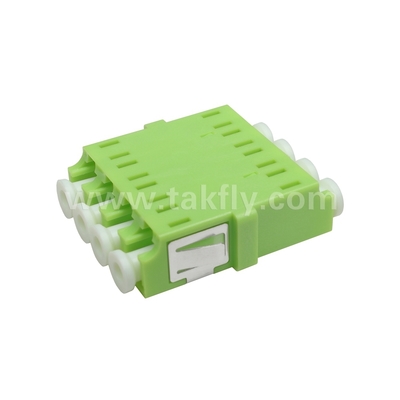

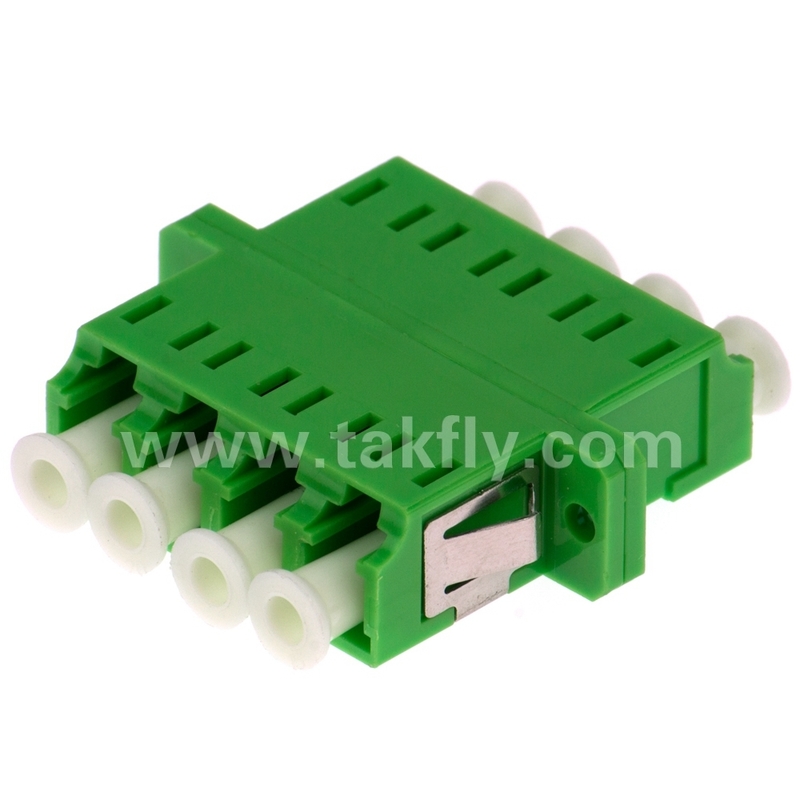

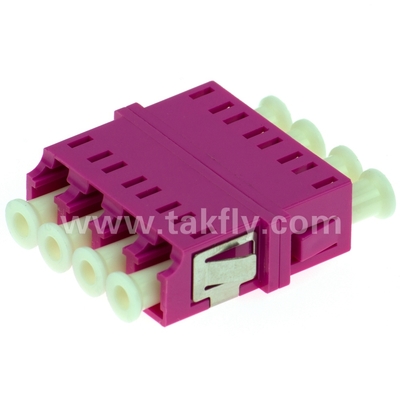

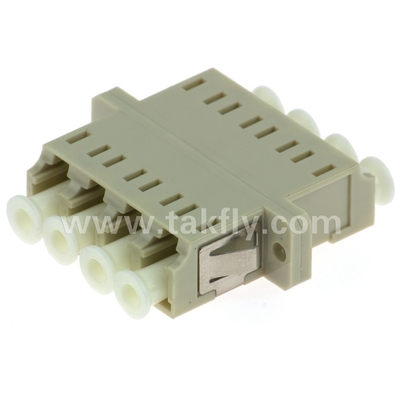

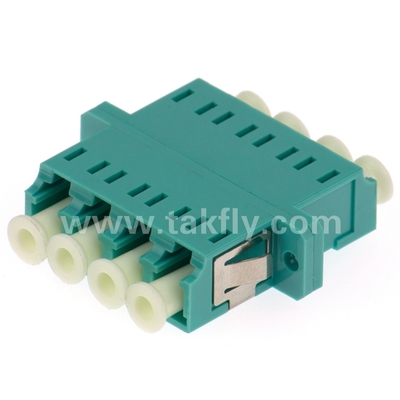

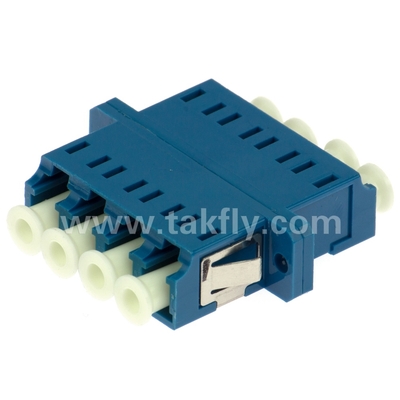

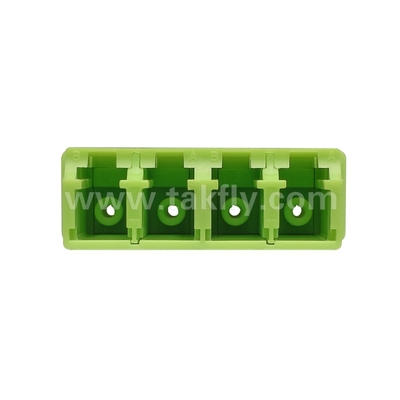

LC Quad Fiber Optic Adapter Singlemode Multimode APC UPC
Detalhes do produto:
| Lugar de origem: | CHINA |
| Marca: | OEM |
| Certificação: | CE/REACH/RoHS |
| Número do modelo: | TK-FOA-LCD-888 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 100 |
|---|---|
| Preço: | 0.50USD |
| Detalhes da embalagem: | Caixa de cartão 55*40*35cm |
| Tempo de entrega: | 3 a 5 dias |
| Termos de pagamento: | T/T, Western Union, MoneyGram |
| Habilidade da fonte: | 100000/WEEK |
|
Informação detalhada |
|||
| Perda de inserção: | ≤ 0,2 dB | Contagem de fibras: | Caud |
|---|---|---|---|
| Cor: | Azul/Água/Rosa/Verde/Bege/Verde limão | Temperatura operacional: | -40 a 85°C |
| Destacar: | LC duplex fiber adapter single mode,fiber optic adapter APC UPC,single mode LC duplex adapter |
||
Descrição de produto
LC Quad Fiber Optic Adapter Singlemode Multimode APC UPC
Product Attributes
| Attribute | Value |
|---|---|
| Insertion loss | ≤0.2dB |
| Fiber count | Quad |
| Color | Blue/Aqua/Rose/Green/Beige/Lime green |
| Operating temperature | -40~85℃ |
Product Description
The LC Quad Fiber Optic Adapter is designed for connecting fiber optic connectors, efficiently coupling output power from transmitting fiber to receiving fiber. It serves as a reliable solution for cable-to-cable or cable-to-equipment connections in various network configurations.
Key Features
- Single mode and Multimode compatibility
- Zirconia sleeves or Phosphor bronze sleeves
- NTT standard compatible
- Patch panel mount applications
- Compliant with JIS5974 and Bellcore GR-326 standards
- Meets IEC874-14 & IEC874-19 specifications
- All parts compliant with ROHS
Technical Specifications
| Product | LC Adapter |
|---|---|
| Mode | SM | MM |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Mating Durability (500 times) | Additional Loss ≤0.1dB |
| Temperature Stability (-40℃～85℃) | Additional Loss ≤0.2dB |
| Operating Temperature | -40℃～+85℃ |
| Storage Temperature | -40℃～+85℃ |
TAKFLY LC adapters feature easy installation, low insertion loss, excellent interchangeability, and superior resistance to both high and low temperatures.
