EC-EC Simplex Fiber Optic Patch cord UPC SM PVC/LSZH/TPU
Detalhes do produto:
| Lugar de origem: | China, Shenzhen |
| Marca: | DF/OEM/Nuetral |
| Certificação: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número do modelo: | TK-SC/UPC 0,9 mm |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | Negociável |
|---|---|
| Preço: | negotiable denpend on QTY |
| Detalhes da embalagem: | Caixa blister + caixa |
| Tempo de entrega: | 5-9 dias úteis dependendo do QTY |
| Termos de pagamento: | Western Union,T/T,MoneyGram/Paypal |
| Habilidade da fonte: | 1000pcs/dia |
|
Informação detalhada |
|||
| Nome do produto: | Cabo de ligação EC-EC | Perda de interação: | ≤0,3dB |
|---|---|---|---|
| Perda de retorno: | UPC SM ≥50dB 、APC SM ≥ 60dB 、UPC MM ≥ 35dB | Diâmetro do cabo: | 2.0、3.0 ou personalizado (simplex/duplex) |
| Tipo de fibra: | SM (G652、G655、G657); MM (OM1-OM5) | Material da jaqueta: | PVC、LSZH、TPU |
| Cor: | azul ou outros | Material do cabo: | Tubo de aço inoxidável, PVC/LSZH |
| Raio de dobra: | 10D/20D | Temperatura de operação: | -20 ℃ ~ 70 ℃ |
| Diâmetro da fibra: | 50/125 | Resistência à tracção: | >70N |
| Nota: | Grau de Telecomunicações | certificado: | CE/ROHS/REACH |
Descrição de produto

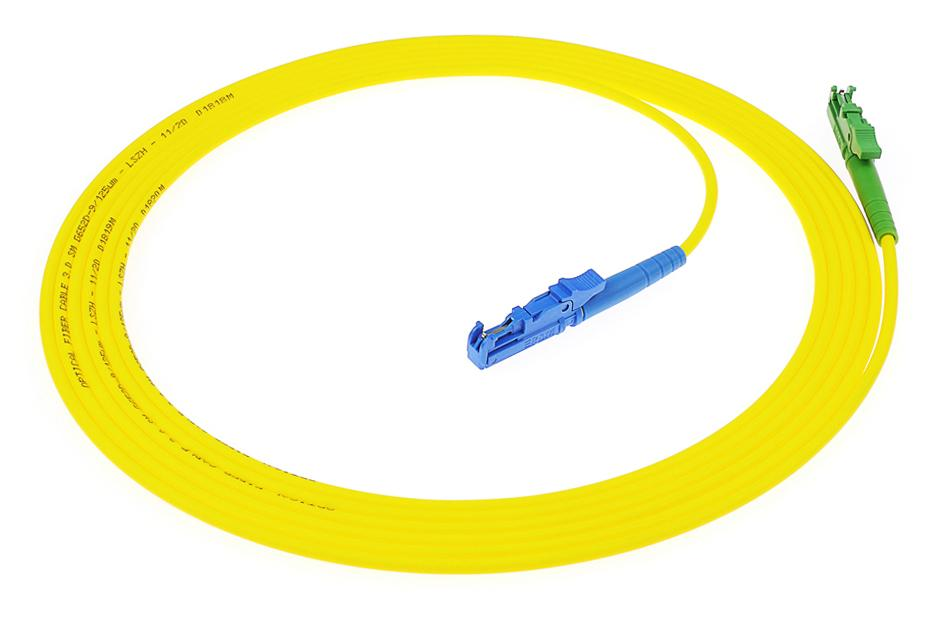

EC-EC Simplex Fiber Optic Patch cord UPC SM PVC/LSZH/TPU
Describe:
Fiber optic patch cord is the cable with both ends terminated with fiber optic connectors, which realizes the connection between optic networking equipment and equipment, and equipment and patch cords. Easy operation and convenience make it indispensable as one of the passive products for optic networking construction.
Application:
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANS)
- Data processing networks
- Test equipment
- Wide area networks(WANS)
Features:
- Connector type SC, LC, FC, ST, E2000 etc. is optional
-
Good exchange ability
-
Good durability
-
High temperature stability
-
Standard:Telcordia GR-326-CORE
Parameter:
Why choose TAKFLY - Advantages as follows:
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products;
- More than 500 assembly workers with 5 years experienced;
- More than 10 R & D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL & RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
