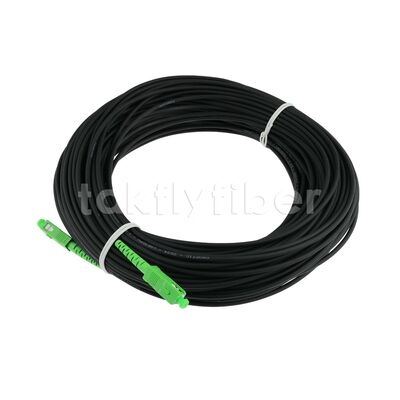

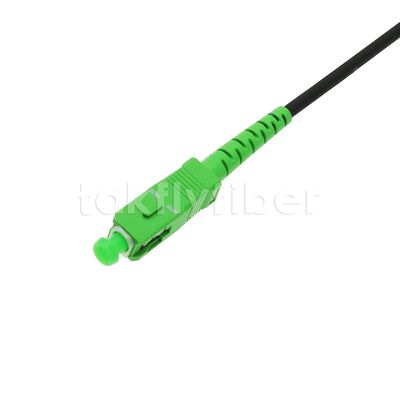

CPR Eca Certified 3.0mm TPU Round Drop Cable Fiber Optic Patch Cord SCAPC-SCAPC
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | DF/OEM/Nuetral |
| Certificação: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número do modelo: | TK-PC-3.0-TPU-SA-SA-20M |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 100 unidades |
|---|---|
| Preço: | US$0.01~4.99/PC |
| Detalhes da embalagem: | Embalagem padrão de exportação |
| Tempo de entrega: | 5-9 dias úteis dependendo do QTY |
| Termos de pagamento: | Western Union, T/T, MoneyGram/Paypal |
| Habilidade da fonte: | 10000pcs/dia |
|
Informação detalhada |
|||
| Nome do produto: | CPR Eca certificou cabo de remendo redondo de fibra óptica TPU de 3,0 mm TPU SCAPC-SCAPC | Perda de interação: | ≤0,3dB |
|---|---|---|---|
| Perda de retorno: | APC SM ≥ 60 dB | Tipo de fibra: | OS2, G652D, G657A1, G657A2, G657B3 |
| Diâmetro: | 3,0 mm | Tipo de conector: | APC |
| Material da jaqueta: | TPU | Cor: | preto |
| Comprimento de onda: | 1310nm, 1550nm | Comprimento: | 20m ou personalizado |
| Temperatura de operação: | -20℃~70℃ | Diâmetro da fibra: | 9/125 |
| Nota: | Grau de Telecomunicações | Certificado: | CE/ROHS/REACH |
| Capacidade de produção: | 10000pcs/dia | ||
| Destacar: | 3.0mm TPU fiber optic patch cord,SCAPC-SCAPC fiber optic cable,CPR Eca certified drop cable |
||
Descrição de produto
CPR Eca Certified 3.0mm TPU Round Drop Cable Fiber Optic Patch Cord SCAPC-SCAPC
CPR Eca Certified 3.0mm TPU Round Drop Cable Fiber Optic Patch Cord SCAPC-SCAPC
Takfly's 3.0mm TPU Round Drop Cable Fiber Optic Patch Cord SCAPC-SCAPC is designed for both indoor and outdoor applications. It is typically manufactured with SM G657A2 or SM G657B3 fiber, offering superior bending performance.
Takfly's 3.0mm TPU Round Drop Cable Fiber Optic Patch Cord SCAPC-SCAPC is designed for both indoor and outdoor applications. It is typically manufactured with SM G657A2 or SM G657B3 fiber, offering superior bending performance.
How to Order Optical Fiber Patch Cord
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
- Coating material: PVC / LSZH
- Fiber count: simplex / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: customized to your requirements
- MPO/MTP connector specifications: method (A type / B type / C type), male or female, fiber count (4/8/12/16/24/32 fiber)
3.0mm TPU Fiber Optic Patch Cord Specifications
| End face type | SC/APC-SC/APC |
|---|---|
| Fiber type | SM G657A2 colored with red color |
| Cable Diameter | 3.0±0.2mm |
| Insertion loss | ≤0.25dB for ≥97% of the connections |
| Return loss | APC≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | Black |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | 3M, 7M, 50M, 100M, or customized |
Fiber Optic Patchcord Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Fiber Optic Patchcord Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Fiber Optic Patchcord Images
Why Choose TAKFLY - Our Advantages
Professional Manufacturer
- Over 25 years of manufacturing experience in fiber optic products - one-stop purchasing
- More than 450 assembly workers with 3+ years of experience
- 26+ R&D Engineers
- 16 sets of Germany imported Injection Machines and 10+ Cable Production Lines
- 30+ sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM branding available
- Worldwide exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, ICT, ISE, Fiberdays, AOTEC, etc.
- 24/7 after-sales service available
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Full inspection of production half-done
- Full inspection of finished products before packing
- Spot check before shipping
Delivery & Shipping
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
- Shipping: DHL, UPS, FEDEX, TNT, EMS (3-5 working days)
- Sea or air freight using your preferred forwarder or our partnered one
Payment Terms
T/T, PayPal, Western Union, and L/C accepted. Competitive pricing available for large quantity orders.
