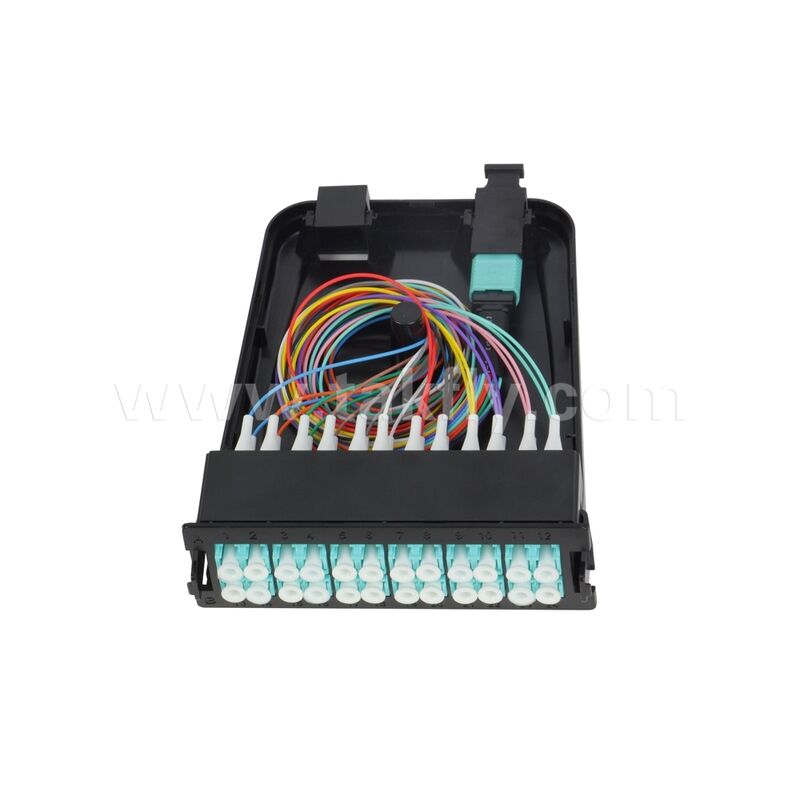

High Density MPO MTP Female Male - 12F 24F LC 0.9mm SM MM LGX Cassette Module Box for MPO MTP Fiber Optical Patch Panel / Fiber Optic Chassis / Fiber Optic ODF/ Fiber Optic Distribution Box
Detalhes do produto:
| Lugar de origem: | Shenzhen, China |
| Marca: | OEM |
| Certificação: | CE/ROHS/CPR/REACH/ISO9001/ISO14001 |
| Número do modelo: | MPO MTP |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 |
|---|---|
| Preço: | USD10.00-100.00/Piece |
| Detalhes da embalagem: | com caixa da caixa |
| Termos de pagamento: | T/T, Western Union, Paypal |
|
Informação detalhada |
|||
| Conector de fibra: | MPO, MTP, MT, SC, LC, FC, ST, etc. | Núcleos de fibra: | Singlex, Duplex, 4, 8, 12, 24 fibras, etc. |
|---|---|---|---|
| Modo de fibra: | SM(G655,G652,G657),MM(OM1,OM2,OM3,OM4,OM5) | Tipo de polimento: | PC, UPC, APC |
| Gênero: | Masculino, Feminino | Diâmetro do cabo: | 250um, 0,9 mm, 2,0 mm, 3,0 mm ou personalizado |
| Material da jaqueta: | PVC, LSZH, OFNR, OFNP, etc. | Comprimento do cabo: | 0,5M, 1M, 3M, 5M ou personalizado |
| Polaridade do cabo: | Tipo A, Tipo B, Tipo C ou Personalizado | Cor do cabo: | Amarelo, Aqua, Violeta, Lima ou Personalizado |
| Destacar: | High Density MPO MTP fiber cassette,12F 24F LC fiber optic module,LGX cassette for fiber patch panel |
||
Descrição de produto
High Density MPO MTP Fiber Optic Cassette Module
This high-density MPO MTP cassette module supports 12F and 24F configurations with LC 0.9mm connectors, designed for compatibility with MPO MTP fiber optic patch panels, chassis, ODF units, and distribution boxes. Ideal for high-density connectivity applications in data centers and telecommunications infrastructure.
Product Overview
Our MPO MTP LC SC FC ST fiber optic patch cords, breakout cables, and trunk cables are engineered for reliable high-density connectivity. Available in various configurations including optical fiber patch cables, fiber optic jumpers, and optical fiber trunk cables to meet diverse installation requirements.
Technical Specifications
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8° Angle Polish) ≥20 for PC |
≥50 for PC | -- | -- |
| Male/Female | Male: With Pins, Female: Without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10 ~ 55Hz) | |||
| Thermal Cycle | ≤0.3 (-40 ~ 75℃, 21 Cycles) | |||
