Descrição de produto
Micro Optical Fiber Indoor Cable GJFH-24-288
Product Overview
Micro Optical Fiber Indoor Cable GJFH-24-288 is designed for high-performance indoor fiber optic applications with excellent reliability and flexibility.
Applications
- Optical fiber active connection jumper or tail fiber
- Routing and patching for data center and indoor communication network locations
- Interconnection of instruments and communication equipment
Product Characteristics
- Coated fiber is easy to peel off
- Aramid yarn reinforced element provides excellent tensile resistance
- Multi-core number with small outer diameter
- Good flame-retardant performance with low induced attenuation within operating temperature range
Optical Parameters and Properties
Single-mode Fiber Specifications
| Fiber Type | G652D (1310/1550nm) | G657A1 (1310/1550nm) | G657A2 (1310/1550nm) | G657B3 (1310/1550nm) |
|---|---|---|---|---|
| Attenuation (dB) Typical | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 |
| Attenuation (dB) Maximum | 0.5/0.4 | 0.5/0.4 | 0.5/0.4 | 0.5/0.4 |
| Zero Dispersion Slope | ≤0.091 ps/km*nm² | ≤0.092 ps/km*nm² | ≤0.092 ps/km*nm² | ≤0.092 ps/km*nm² |
| Dispersion (1285~1340nm) | -3.5 - 3.5ps/(nm*km) | -3.5 - 3.5ps/(nm*km) | -3.5 - 3.5ps/(nm*km) | -3.5 - 3.5ps/(nm*km) |
| Mode Field Diameter (@1310nm) | 9.1±0.4 µm | 8.8±0.4 µm | 8.8±0.4 µm | 8.8±0.4 µm |
| Cutoff Wavelength Cable (nm) | ≤1260 nm | ≤1260 nm | ≤1260 nm | ≤1260 nm |
| Min Bend Radius (mm) | 16 mm | 10 mm | 7.5 mm | 5.0 mm |
| Cladding Diameter (µm) | 125±1.0µm | 125±1.0µm | 125±1.0µm | 125±1.0µm |
Multi-mode Fiber Specifications
| Fiber Type | 62.5/125 µm (850/1300nm) | 50/125 µm (850/1300nm) | BIOM2+ (850/1300nm) | BIOM3 (850/1300nm) | BIOM4 (850/1300nm) | BIOM5 (850/953nm/1300nm) |
|---|---|---|---|---|---|---|
| Attenuation (dB) Typical | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 |
| Attenuation (dB) Maximum | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 |
| Bandwidth (MHz*km) | ≥200/≥500 | ≥400/≥500 | ≥700/500 | ≥1500/500 | ≥3500/500 | ≥3500/1850/500 |
| Effective Modal Bandwidth | ----/---- | ----/---- | ≥950/--- | ≥2000/---- | ≥4700/---- | ≥4700/2470 |
| 10 Gigabit Ethernet SX (M) | ---- | ---- | ≤150/---- | ≤300/---- | ≤550/---- | |
| 40GBASE-SR4/100GBASE-SR10 | ---- | ---- | ---- | 140/---- | 170/---- | 200M/----/---- |
| Min Bend Radius (mm) | 30 | 30 | 7.5 | 7.5 | 7.5 | 7.5 |
| Cladding Diameter (µm) | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 |

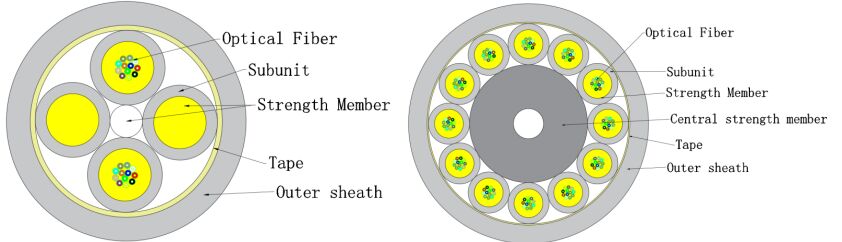

Product Structure
| Items | Descriptions |
|---|---|
| Optical Fiber |
Fiber count: 24-48, 50-72, 74-96, 98-288 Color: The chromatographic |
| Subunit/Filler |
Count: 4, 6, 8, 12 Material: LSZH |
| Strength Member |
Material: Aramid yarn Color: Depending on customer requirements or fiber type Diameter: 3.0±0.1 mm Thickness: 0.5±0.05 mm |
| Central Strength Member | Material: FRP & sheath |
| Outer Sheath |
Material: LSZH Color: Depending on customer requirements or fiber type |
| The Parcel Layer |
Material: Tape Diameter: 9.0±0.3, 11.2±0.4, 13.5±0.5, 17.5±0.5 mm |
Mechanical and Environmental Characteristics
| Items | Descriptions |
|---|---|
| Tensile Strength |
Short-term: 150N Long-term: 50N |
| Crush Resistance |
Short-term: 500N/100mm Long-term: 100N/100mm |
| Temperature Range | -20℃ to +60℃ |
| Bending Radius |
Dynamic: ≥20D Static: ≥10D |
Packaging & Delivery
- Packaging: Wooden Drums Protection. According to customer or our company request.
- Delivery Length: Standard Reel Length: 0.5-2.0 km or according to customer request.
Cable Marking
- Cable Marker every Meter by inkjet printing
- Year of manufacture
- Type of Cable
- Number of fiber
- Cable length
- Etc.
- According to customer or our company request
