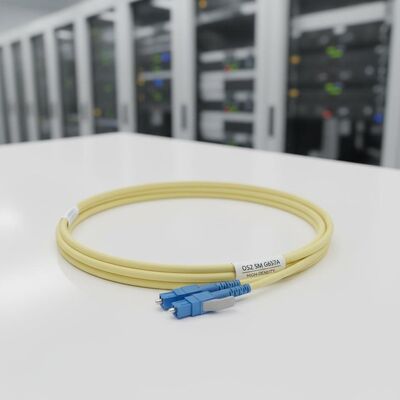

LC Uniboot Fiber Optic Patch Cable with 2.0mm Diameter and OS2 SM G657A for High-Density Environments
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | DF/OEM/Nuetral |
| Certificação: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número do modelo: | TK-UPC-2.0-1M-LCP-LCP-SM-OM3-XXX |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 100 unidades |
|---|---|
| Preço: | US$0.01~3.99/PC |
| Detalhes da embalagem: | Embalagem padrão de exportação |
| Tempo de entrega: | 5-9 dias úteis dependendo do QTY |
| Termos de pagamento: | Western Union,T/T,MoneyGram/Paypal |
| Habilidade da fonte: | 10.000 unidades/dia |
|
Informação detalhada |
|||
| Nome do produto: | Cabo de patch de fibra óptica Uniboot LC/UPC-LC/UPC OS2 SM G657A Duplex OFNR 2,0mm | Perda de interação: | ≤0,2dB |
|---|---|---|---|
| Perda de retorno: | PC MM ≥ 30dB, SM≥60dB (APC), SM ≥50dB (PC) | Tipo de fibra: | OS2, OM3, OM4 |
| Diâmetro: | 2,0 mm | Tipo de conector: | PC |
| Material da jaqueta: | LSZH/PVC/OFNR/OFNP | Cor: | Aqua, Amarelo, Violeta ou Personalizado |
| Comprimento de onda: | 850/1310nm | Comprimento: | 1m ou personalizado |
| Temperatura de operação: | -20℃~70℃ | Diâmetro da fibra: | 9/125 |
| Nota: | Grau de Telecomunicações | Certificado: | CE/ROHS/REACH |
| Capacidade de produção: | 10.000 unidades/dia | ||
| Destacar: | LC Uniboot Design Fiber Optic Patch Cable,2.0mm Diameter LC Uniboot Patch Cord,OS2 SM G657A Fiber Optic Patchcord |
||
Descrição de produto
Uniboot Fiber Optic Patch Cable LC/UPC-LC/UPC OS2 SM G657A Duplex OFNR 2.0mm
Takfly Uniboot Fiber Optic Patch Cable features LC-LC Uniboot connectors designed for high-density environments. This compact design uses a single cable for both fibers, reducing cable congestion and improving airflow in crowded data center applications.
Key Benefits
The LC-LC uniboot design significantly reduces cable management requirements and enhances hot airflow in high-density fiber patching environments. This space-saving solution minimizes cable management challenges while maintaining optimal performance.
Technical Specifications
| Specification | Details |
|---|---|
| Connector Type | Standard Clip LC to LC |
| Polish Type | UPC to UPC |
| Fiber Count | 2 Fibers |
| Fiber Grade | Bend Insensitive Fiber |
| Fiber Mode | OS2/SM G657A1/SM G657A2, OM3/OM4 |
| Wavelength | 850/1300nm 1310/1550nm |
| Flame Rating | Riser (OFNR) |
| Cable Outside Diameter | 2.0mm |
| Polarity | A (Tx) to B (Rx) |
| Tensile Strength | 60/100N (Long/Short Term) |
| Min. Bend Radius (Optical Fiber) | 7.5mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥30dB |
| Attenuation at 850nm | ≤3.5dB/km |
| Attenuation at 1300nm | ≤1.5dB/km |
| Operating Temperature | -10 to 70°C (14 to 158℉) |
| Storage Temperature | -20 to 70℃ (-4 to 158℉) |
Applications
- CATV Systems
- Telecommunication Networks
- Active Device Termination
- Local Area Networks (LANS)
- Data Processing Networks
- Test Equipment
- Wide Area Networks (WANS)
Product Features
- Uniboot with Single Housing Design
- High Back Reflection Loss
- Stable Capability and High Reliability
- Excellent Mechanical Capability
- PVC Jacket as Default
- Ideal Solution for High-Speed Data Transmission
- 100% Inspected for Optical Characteristics Before Shipment
Product Design & Polarity Options
The connector design enables quick and simple polarity changes between A-B and A-A configurations without tools or specialized skills. This tool-free polarity switching eliminates the risk of fiber exposure or damage and allows cables to function as LC duplex or simplex as needed.
With more than 10 years of sales and shipping experience in optical fiber products, we have helped over 127 customers expand their business and increase sales. We provide professional guidance to help you save time and money while increasing your sales performance.
