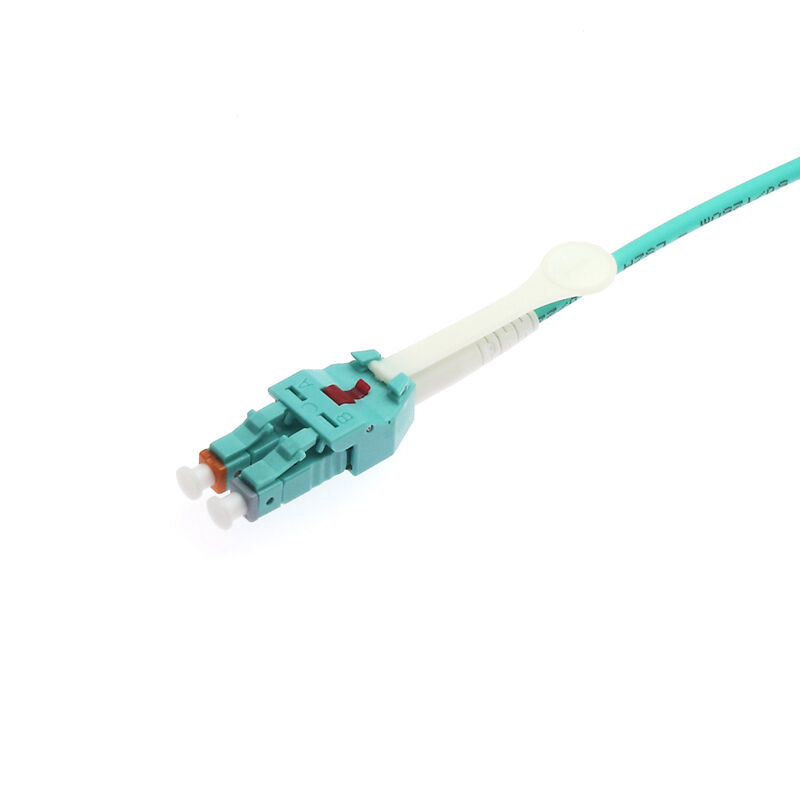

3.0mm Diameter LC Uniboot OM4 Patch Cord with Polarity Reversible Feature
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | DF/OEM/Nuetral |
| Certificação: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número do modelo: | TK-UPC-2.0-1M-LCP-LCP-SM-OM3-XXX |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 100 unidades |
|---|---|
| Preço: | US$0.01~3.99/PC |
| Detalhes da embalagem: | Embalagem padrão de exportação |
| Tempo de entrega: | 5-9 dias úteis dependendo do QTY |
| Termos de pagamento: | Western Union,T/T,MoneyGram/Paypal |
| Habilidade da fonte: | 10.000 unidades/dia |
|
Informação detalhada |
|||
| Nome do produto: | cabo de remendo reversível do LC Uniboot OM4 da polaridade de 3.0mm LC Uniboot | Perda de interação: | ≤0,2dB |
|---|---|---|---|
| Perda de retorno: | PC MM ≥ 30dB, SM≥60dB (APC), SM ≥50dB (PC) | Tipo de fibra: | OS2, OM3, OM4 |
| Diâmetro: | 3,0 mm | Tipo de conector: | PC |
| Material da jaqueta: | LSZH/PVC/OFNR/OFNP | Cor: | Aqua, Amarelo, Violeta ou Personalizado |
| Comprimento de onda: | 850/1310nm | Comprimento: | 1m ou personalizado |
| Temperatura de operação: | -20℃~70℃ | Diâmetro da fibra: | 9/125 |
| Nota: | Grau de Telecomunicações | Certificado: | CE/ROHS/REACH |
| Capacidade de produção: | 10.000 unidades/dia | ||
| Destacar: | 3.0mm Diameter LC Uniboot Patch Cord,Polarity Reversible OM4 Patch Cord,OM4 Fiber Optic Patchcord |
||
Descrição de produto
3.0mm LC Uniboot Polarity Reversible LC Uniboot OM4 Patch Cord
Takfly's Polarity Reversible LC Uniboot Patch Cords simplify cable management while connecting high-speed data and legacy networks. The single housing and round duplex cable reduces cabling by 50% compared to conventional LC duplex cables.
With fewer cables compared to conventional LC duplex cabling, uniboot patch cables provide better access to connectors and panels. In dense patching fields, fewer cables make moves, adds and changes easier for engineers and improve airflow around equipment. The pre-configured Uniboot alignment speeds up installation as its precision manufactured connector connects to both duplex ports while eliminating possible error or time lining up conventional LC connectors to ports.
Product Specifications
| Connector Type | Standard Clip LC to LC | Polish Type | UPC to UPC |
|---|---|---|---|
| Fiber Count | 2 Fibers | Fiber Grade | Bend Insensitive Fiber |
| Fiber Mode | OS2/SM G657A1/SM G657A2, OM3/OM4 | Wavelength | 850/1300nm 1310/1550nm |
| Flame Rating | Riser (OFNR) | Cable Outside Diameter (OD) | 2.0mm |
| Polarity | A (Tx) to B (Rx) | Tensile Strength | 60/100N (Long/Short Term) |
| Min. Bend Radius (Optical Fiber) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Insertion Loss | ≤0.2dB | Return Loss | ≥30dB |
| Attenuation at 850nm | ≤3.5dB/km | Attenuation at 1300nm | ≤1.5dB/km |
| Operating Temperature | -10 to 70°C (14 to 158℉) | Storage Temperature | -20 to 70℃ (-4 to 158℉) |
Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Key Features
- Uniboot with a Single Housing
- High back reflection loss
- Stable capability and high reliability
- Excellent mechanical capability
- PVC jacket as default
- An ideal solution for high-speed data transmission
- 100% inspected for optical characteristics before shipment

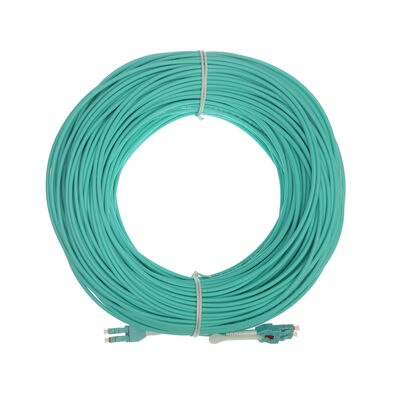

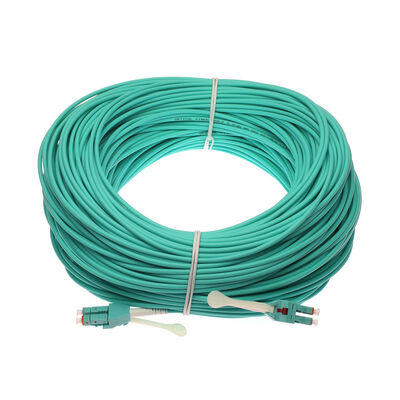

Product Images
With more than 10 years of sales experience and shipping experience in optical fiber products, we have helped more than 127 customers to expand their business and increase sales. We believe we can provide you with professional guidance, help you save time and money, and increase your sales.
