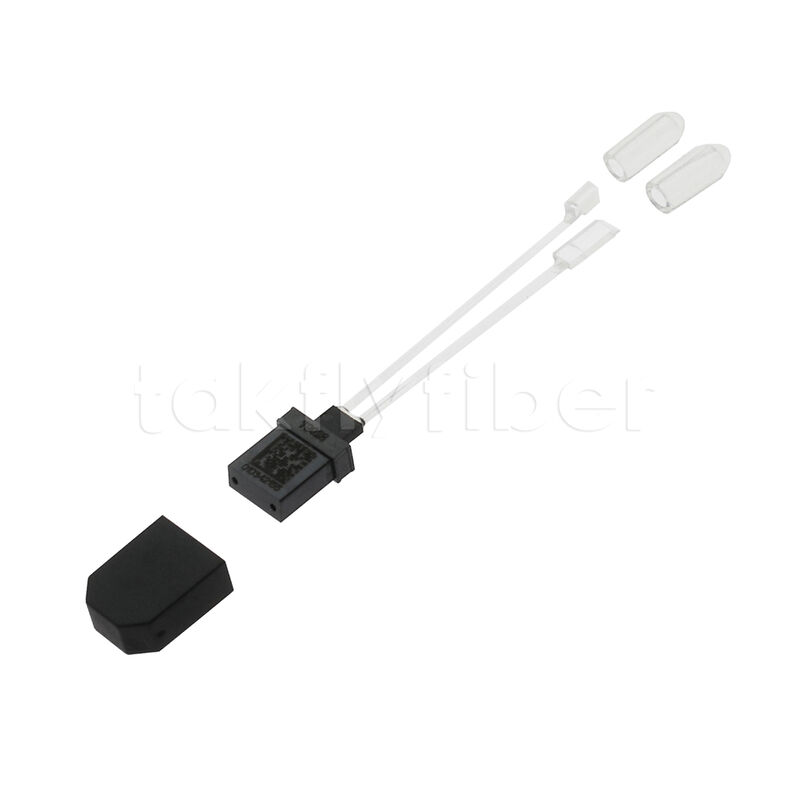

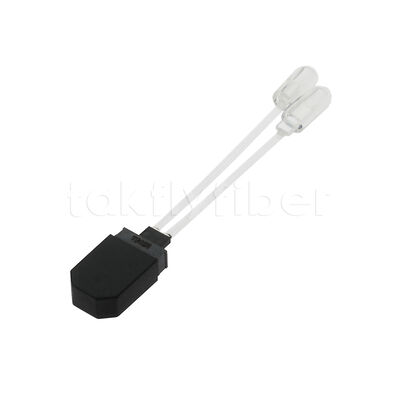

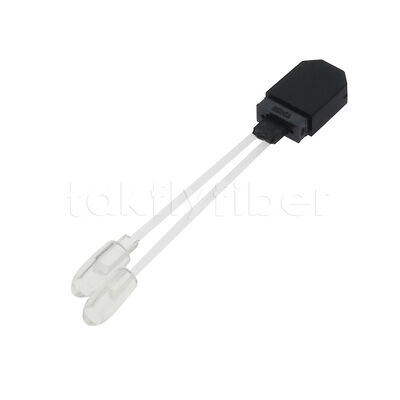

High-Speed Cost-Effective Customizable MT to FA Fiber Array Assembly for Data Center Applications
Detalhes do produto:
| Lugar de origem: | Shenzhen, China |
| Marca: | OEM/Takfly |
| Certificação: | CE, ROSH REACH |
| Número do modelo: | DF-MT-2FA |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 peça |
|---|---|
| Preço: | Can be negotiated |
| Detalhes da embalagem: | Sacos PP + caixa de papelão/caixa de plástico + caixa de papelão |
| Tempo de entrega: | 3-15 dias úteis de acordo com a quantidade e requisitos |
| Termos de pagamento: | L/C,T/T,Western Union,MoneyGram,Paypal |
| Habilidade da fonte: | 20.000 unidades por mês |
|
Informação detalhada |
|||
| Nome do produto: | MT econômico de alta velocidade para conjunto de matriz de fibra 2FA | Tipo de fibra: | OM3, OM4; OM1, OM2; OS1, OS2; PM; OM5 |
|---|---|---|---|
| Contagem de fibras: | 2F/4F/8F/12F/16F/24F | Ângulo FA: | 0/42,5° |
| Gênero MT: | Masculino feminino | Comprimento da fibra: | 20~100mm, comprimento personalizado disponível |
| Destacar: | High-Speed MT to FA Fiber Array Assembly,Cost-Effective Fiber Array Unit,Customizable FAU |
||
Descrição de produto

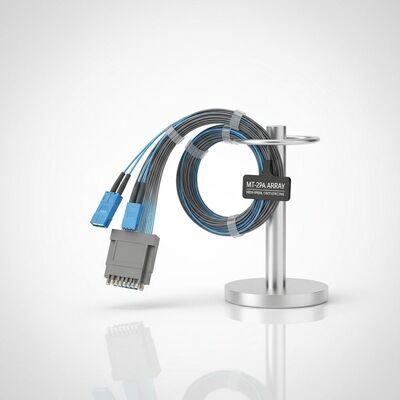

High-Speed Cost-Effective MT to 2FA Fiber Array Assembly
Takfly designs and produces a comprehensive selection of fiber array units (FAUs) engineered for long-haul and metro networks, as well as data center applications. Leveraging our expertise in specialty fibers and customizable V-groove chips and covers, our FAU products can be tailored to meet your specific requirements, including inter-fiber core pitch and precision, number of channels, fiber type, and termination type.
Each fiber array unit delivers ultra-accurate fiber core positioning, ensuring low insertion loss and high optical return loss, achieved through our advanced dicing machines and core pitch measurement systems. Takfly Group also provides FA-integrated connectors and interposers to support the evolving needs of photonic integrated circuit (PIC) development.
Key Features
- GR-1435, GR-1221 compliant
- Transmission mode: multi-channel, both serial and parallel
- High accuracy performance
- Support for various configurations: 12 x 1.25~3.5G, 2X40G(4x10G), 2X100G(4x25G), 10X10G, 12x10G, 4x32G, 8X10G, 8X25G, 8X50G, 8X100G
- Coupling Mode: Active coupling with light source (0~45 degrees) and Passive coupling with guide pins (90 degrees)
- IL/RL Specifications: MT IL ≤0.60 dB typical 0.20 dB, MT RL ≥20 dB
- Operating temperature range: -40℃ to +85℃
Technical Specifications
| Connector A | MT Ferrule with guide pin |
| Connector B | FA, customized size/angle available |
| Fiber shape | Ribbon/single fibers |
| Fiber count | 2F/4F/8F/12F/16F/24F |
| Fiber type | OM3, OM4; OM1, OM2; OS1, OS2; PM; OM5 |
| Length | 20~100mm, customized length available |
| Length tolerance | +500um/-0um |
Frequently Asked Questions
Could you customize the MT to FA for customers?
Yes, we can. OEM is available. Welcome to send us your drawing requirements.
What's your production capacity for MT-FA?
Our production capacity is 20K ~40K pieces per month, depending on different channel configurations.
Can I visit your facility?
Sure, our factories are located in Shenzhen and Zhongshan, Guangdong, China. Please contact us to schedule an appointment.
What if there is a quality problem when we receive the goods?
If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
What are your packing terms?
Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
What are your payment terms?
We accept T/T, Paypal, Western Union, Alipay, and other payment methods.
What are your delivery terms?
We offer EXW, FOB, CFR, CIF, and DDU delivery terms.
How about your delivery time?
Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
