3x12F MTP - 36CH Fiber Array FA Assembly with High Transmission Rate Low Consumption and High Stability and Reliability
Detalhes do produto:
| Lugar de origem: | Shenzhen, China |
| Marca: | OEM/Takfly |
| Certificação: | CE, ROSH REACH |
| Número do modelo: | DF-MT-2FA |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 peça |
|---|---|
| Preço: | Can be negotiated |
| Detalhes da embalagem: | Sacos PP + caixa de papelão/caixa de plástico + caixa de papelão |
| Tempo de entrega: | 3-15 dias úteis de acordo com a quantidade e requisitos |
| Termos de pagamento: | L/C,T/T,Western Union,MoneyGram,Paypal |
| Habilidade da fonte: | 20.000 unidades por mês |
|
Informação detalhada |
|||
| Nome do produto: | Conjunto FA de matriz de fibra 3x12F MTP x 36CH com alta taxa de transmissão, baixo consumo, alta es | Tipo de fibra: | OM3, OM4; OM1, OM2; OS1, OS2; PM; OM5 |
|---|---|---|---|
| Contagem de fibras: | 36Fibras | Ângulo FA: | 0/42,5° |
| Comprimento da fibra: | 20~100mm, comprimento personalizado disponível | ||
| Destacar: | High Transmission Rate Fiber Array FA Assembly,Low Consumption MT-FA Patch Cord,High Stability and Reliability 36CH Fiber Array |
||
Descrição de produto

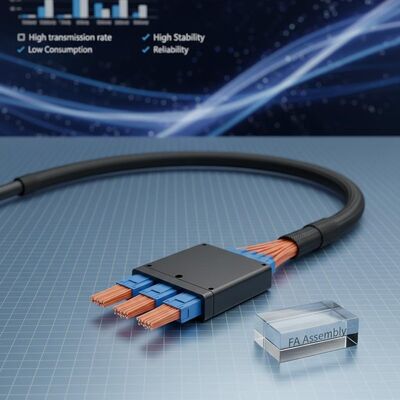

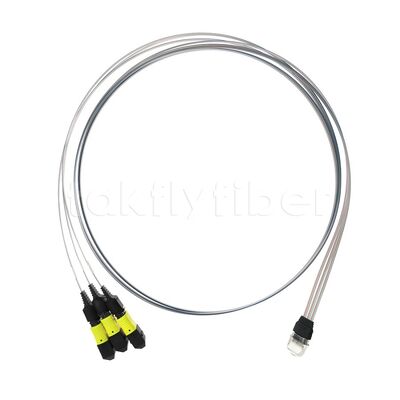

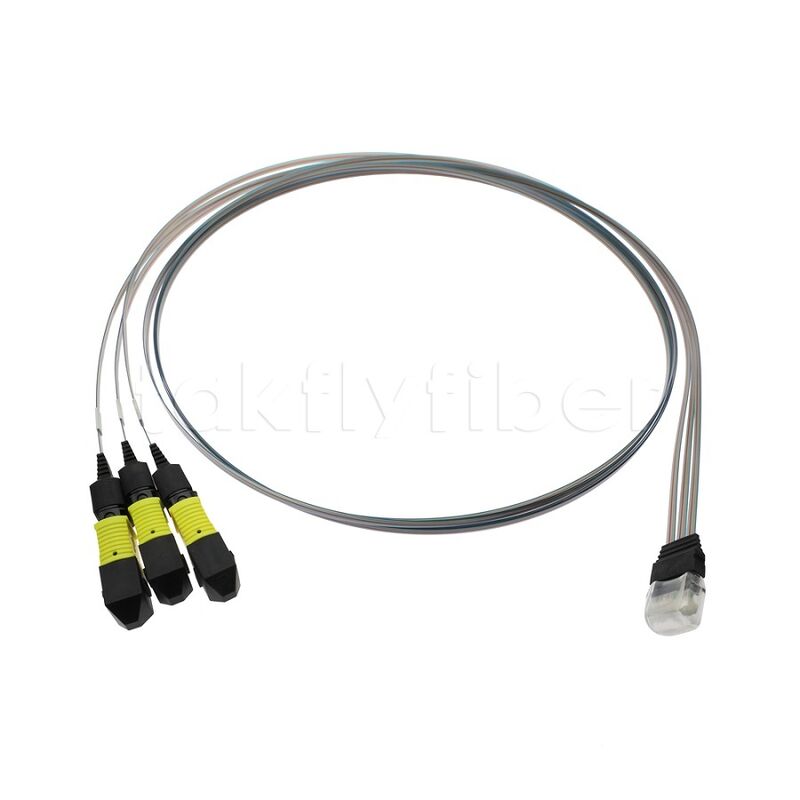

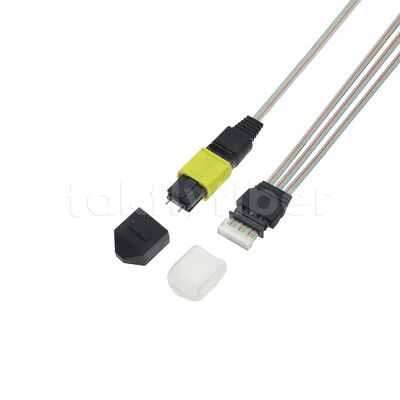

3x12F MTP - 36CH Fiber Array FA Assembly
High-performance 36-channel fiber array assembly featuring high transmission rate, low consumption, and exceptional stability and reliability for demanding optical applications.
Product Overview
Takfly's MT-FA patch cords are specifically engineered for high-speed optical module applications, connecting internal optics to external ports to ensure seamless signal transmission. These fiber optic arrays utilize V-groove substrates to precisely position fiber bundles or ribbons at specified spacing, delivering stable transmission performance with high reliability and customization options.
Applications
- Active Optical Modules
- Communication, high-speed, high-capacity fiber optic transmission
- Internal connector applications in fiber equipment
- Parallel optical transceiver modules, supercomputers, testing equipment, and military applications
Key Features
- Stable optical characteristics
- High-precision MT ferrule with small bending radius fiber for low loss
- Typical core pitch tolerance <±0.5μm
- High accuracy and customization capabilities
- Optical characteristics comply with IEC TIA/EIA standards
- RoHS 2.0 Compliant
Technical Specifications
| Parameter | Unit | Value |
|---|---|---|
| Fiber Count | - | Optional |
| Fiber Mode | - | SM: G652, G657 | MM: OM1, OM2, OM3, OM4, OM5 |
| Wavelength | nm | 1310/1550 | 850/1300 |
| MT Endface Polishing | - | PC | APC | PC | APC |
| Insertion Loss (IL) | dB | ≤0.35 | ≤0.35 |
| Return Loss (RL) | dB | ≥50 | ≥60 | ≥20 | ≥40 |
| Durability | Time | 50 |
| FA Lid Dimensions (L x W x T) | mm | 2.5 x 2 x 0.2 (Optional) |
| V-Groove Dimensions (L x W x T) | mm | 5 x 2 x 0.5 |
| Core Pitch | μm | 175, 250 |
| Bare Fiber Degree | ° | 8, 42.5, 45 |
| FA Insertion Loss (IL) | dB | ≤0.8 |
| Operating Temperature | ℃ | -20 ~ +80 |
| Storage Temperature | ℃ | -15 ~ +60 |
Frequently Asked Questions
Could you customize the MT to FA for customers?
Yes, we can. OEM is available. Welcome to send us your drawing requirements.
What's your production capacity for MT-FA?
Our production capacity is 20K ~40K pieces per month, depending on different channel configurations.
Can I visit your facility?
Sure, our factories are located in Shenzhen and Zhongshan, Guangdong, China. Please contact us to schedule an appointment.
What if there is a quality problem when we receive the goods?
If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
What are your packing terms?
Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
What are your payment terms?
We accept T/T, Paypal, Western Union, Alipay, and other payment methods.
What are your delivery terms?
We offer EXW, FOB, CFR, CIF, and DDU delivery terms.
How about your delivery time?
Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
