1U-19 inch MPO/MTP High-Density rack-mount fiber patch panel for Data Center Application
Detalhes do produto:
| Lugar de origem: | Shenzhen, China |
| Marca: | Takfly/OEM |
| Certificação: | CE, ROHS, REACH, ISO9001, ISO14001 |
| Número do modelo: | TK-HRS-1096E |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 peça |
|---|---|
| Preço: | Can be negotiated |
| Detalhes da embalagem: | Sacos PP + caixa de papelão/caixa de plástico + caixa de papelão |
| Tempo de entrega: | 3-7 dias úteis |
| Termos de pagamento: | Western Union, Money Gram, L/C, T/T |
| Habilidade da fonte: | 3000 peças/semana |
|
Informação detalhada |
|||
| Nome do produto: | Painel de remendo MPO MTP | Conector: | LC |
|---|---|---|---|
| Diâmetro do cabo: | 0,9/0,6mm | Tipo de fibra: | SM MM |
| Aplicativo: | Centro de dados | Perda de inserção: | ≤0,2dB |
| Contagem de fibras: | 12 | Perda de retorno: | ≥20dB |
| Destacar: | 1U 19 inch MPO patch panel,MTP high-density fiber panel,rack-mount fiber patch panel |
||
Descrição de produto

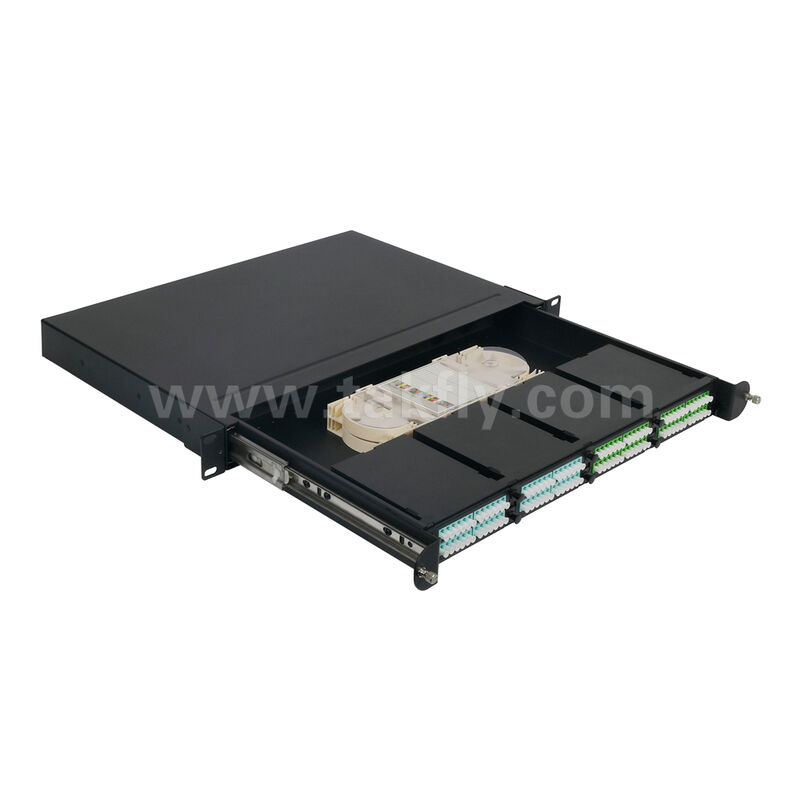

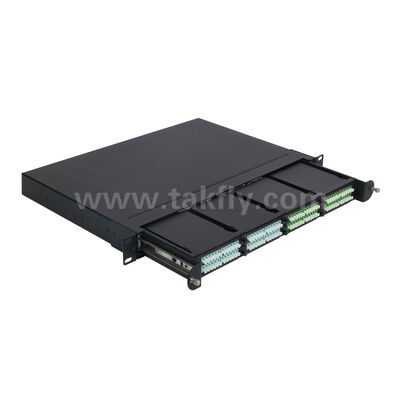

1U-19 inch MPO/MTP High-Density Rack-Mount Fiber Patch Panel
Product Overview
This 1U-19 inch MPO/MTP high-density rack-mount fiber patch panel is engineered for large data center applications including MDF installations, IDF wiring areas for optical fiber backbone connections, fiber distribution unit management, and other high-density integrated fiber environments. Designed for installation in standard 19-inch racks and cabinets.
Key Features
- Constructed from high-quality aluminum alloy with durable electrostatic coating
- Compatible with 19-inch rack-mount and cabinet installations for centralized cassette module management
- 1U high-density design supporting 96 fibers for LC interface
- Available with male or female MPO/MTP connectors with precise PIN and adapter connections
- Modular design with plug-in locking structure and clear line sequence identification
- Compact, lightweight construction with impact-resistant, flame-retardant, and corrosion-resistant properties
Technical Specifications
Applications
- Optical fiber communication dense wiring systems between buildings
- Optical link interconnection in LAN cabling for active equipment
- Telecommunication base stations
- Data center rooms in industrial and commercial buildings
- CATV, LAN, WAN, and FTTX networks
Capacity Information

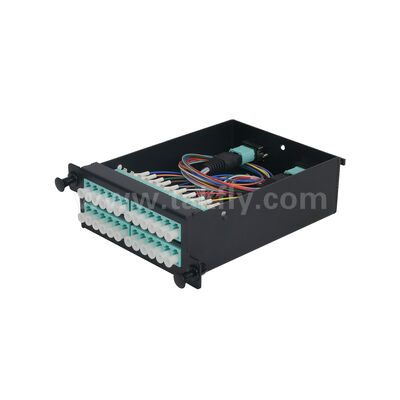

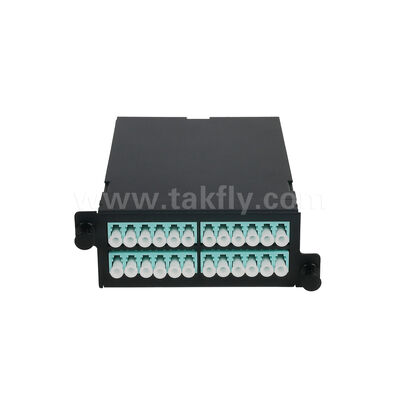

The 1U 19-inch MPO/MTP Patch Panel accommodates 4 pre-connected cassette modules, with maximum capacity of 1152 cores for MPO interface or 96 cores for LC interface. Each independent pre-terminated module box is placed within the optical fiber distribution frame to create a complete patch panel system.
Frequently Asked Questions
What is Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP is a high-performance connector used in fiber optic cabling systems, manufactured in Shenzhen, China.
What are the benefits of Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP offers superior performance, increased density, and cost savings for high-density cabling applications.
What types of applications can Takfly/OEM MPO/MTP be used for?
Suitable for data centers, telecommunications, and other high-density cabling systems requiring reliable fiber optic connections.
What are the advantages of Takfly/OEM MPO/MTP?
Provides improved speed, increased reliability, and higher density compared to traditional fiber optic connectors.
What is the warranty for Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP comes with a comprehensive one-year warranty.
