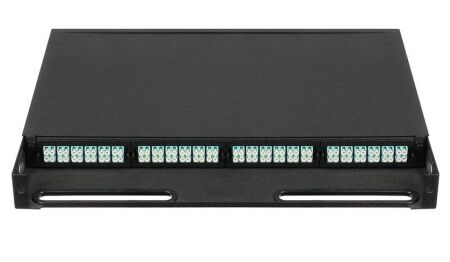

96-288 Cores1U 2U 3U-19 inch MPO/MTP High-Density rack-mount fiber patch panel for Data Center Application
Detalhes do produto:
| Lugar de origem: | Shenzhen, China |
| Marca: | Takfly/OEM |
| Certificação: | CE, ROHS, REACH, ISO9001, ISO14001 |
| Número do modelo: | TK-HRF-1096A |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 peça |
|---|---|
| Preço: | Can be negotiated |
| Detalhes da embalagem: | Sacos PP + caixa de papelão/caixa de plástico + caixa de papelão |
| Tempo de entrega: | 3-7 dias úteis |
| Termos de pagamento: | Western Union, Money Gram, L/C, T/T |
| Habilidade da fonte: | 3000 peças/semana |
|
Informação detalhada |
|||
| Nome do produto: | Painel de remendo MPO MTP | Conector: | LC |
|---|---|---|---|
| Diâmetro do cabo: | 0,9/0,6mm | Tipo de fibra: | SM MM |
| Aplicativo: | Centro de dados | Perda de inserção: | ≤0,2dB |
| Contagem de fibras: | 12 | Perda de retorno: | ≥20dB |
| Destacar: | 96-288 cores MTP fiber patch panel,19 inch rack-mount MPO patch panel,high-density fiber patch panel for data center |
||
Descrição de produto
96-288 Cores 1U/2U/3U 19-Inch MPO/MTP High-Density Rack-Mount Fiber Patch Panel
Takfly series rack-mounted patch panels are engineered to manage and house easy-plug MPO/MTP to LC fiber cassette modules, facilitating connections within plug-and-play pre-terminated high-density MPO/MTP fiber cabling systems. This solution enhances network availability and is particularly suitable for SAN, LAN, and Data Center applications. Each easy-plug MPO/MTP to LC cassette accommodates 12/24-fiber MPO/MTP based fiber assemblies and comes pre-loaded with LC adapters in various fiber modes for flexible deployment.
Key Features
- Designed for 19-inch rack-mount and cabinet installations, ideal for centralized cassette module management
- 1U high-density configuration supports up to 96 fibers with LC interface
- 2U high-density configuration supports up to 192 fibers with LC interface
- 3U high-density configuration supports up to 288 fibers with LC interface
- Constructed from durable metal materials for enhanced reliability
- Modular design enables higher density with ultra-small MTP/MPO modular boxes that optimize space utilization
- Each modular box accommodates 12 or 24 LC adapters and converts to MPO/MTP connections
- Tool-free installation design allows for rapid assembly and deployment without specialized tools or complex procedures
Technical Specifications
Applications
- Optical fiber communication dense wiring systems between buildings
- Optical link interconnection in optical active equipment for LAN cabling
- Telecommunication base stations
- Data center rooms in industrial areas
- Data center rooms in commercial buildings
- CATV systems
- LAN networks
- WAN networks
- FTTX deployments
Frequently Asked Questions
What is Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP is a high-performance connector used in fiber optic cabling systems, manufactured in Shenzhen, China.
What are the benefits of Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP offers superior performance, increased density, and significant cost savings.
What types of applications can Takfly/OEM MPO/MTP be used for?
Takfly/OEM MPO/MTP is suitable for data centers, telecommunications, and other high-density cabling systems.
What are the advantages of Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP provides improved speed, increased reliability, and higher density capabilities.
What is the warranty for Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP comes with a comprehensive one-year warranty.
