Type SC Fiber Optic Patchcord and Pigtai
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | DF/OEM/Nuetral |
| Certificação: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número do modelo: | TK-CS-3.0-1M |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 100 unidades |
|---|---|
| Preço: | US$0.01~2.79/PC |
| Detalhes da embalagem: | Embalagem padrão de exportação |
| Tempo de entrega: | 5-9 dias úteis dependendo do QTY |
| Termos de pagamento: | Western Union,T/T,MoneyGram/Paypal |
| Habilidade da fonte: | 10.000 unidades/dia |
|
Informação detalhada |
|||
| Nome do produto: | ST a LC OM1 OM2 Cordão de Ligação Duplex de Fibra Óptica | Perda de interação: | ≤0,3dB |
|---|---|---|---|
| Perda de retorno: | PC MM ≥ 35 dB | Tipo de fibra: | OM1/OM2 |
| Diâmetro: | 3,0 mm | Tipo de conector: | PC/UPC |
| Material da jaqueta: | LSZH/PVC/PU | Cor: | Laranja ou personalizado |
| Comprimento de onda: | 1310nm, 850nm | Comprimento: | 1m ou personalizado |
| Temperatura de operação: | -40 ℃ ~ 80 ℃ | Diâmetro da fibra: | 50/125 |
| Nota: | Grau de Telecomunicações | Certificado: | CE/ROHS/REACH |
| Capacidade de produção: | 10.000 unidades/dia | ||
| Destacar: | SC fiber optic patchcord with warranty,fiber optic pigtail SC connector,durable SC fiber optic patchcord |
||
Descrição de produto

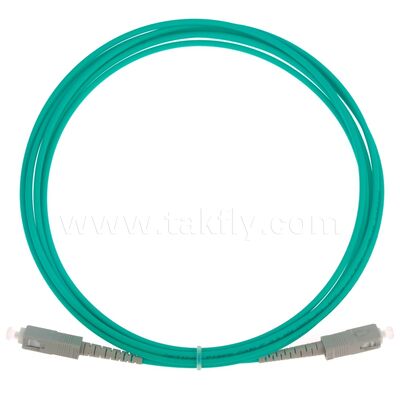

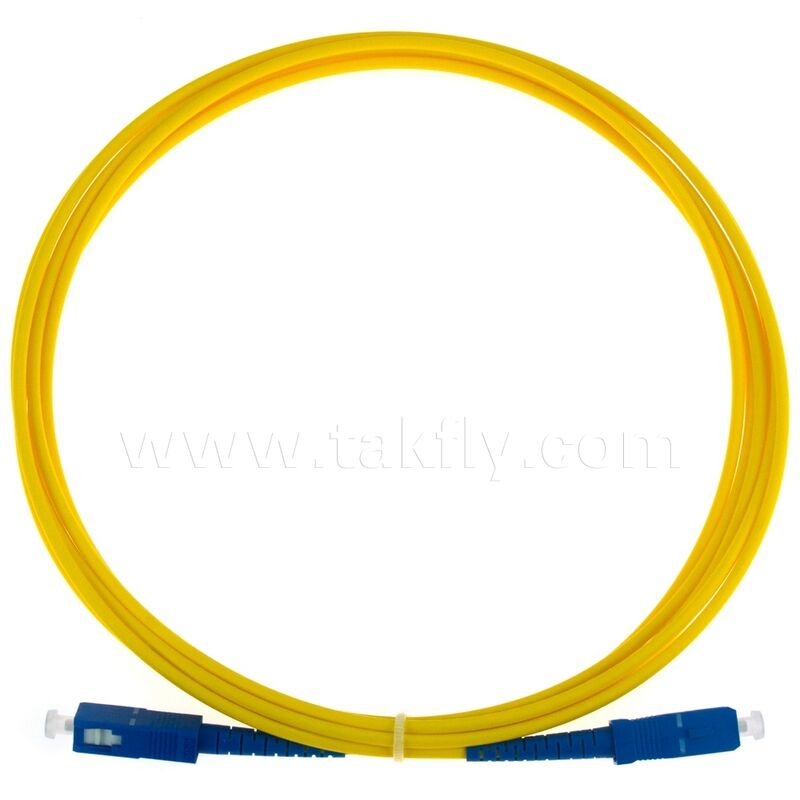

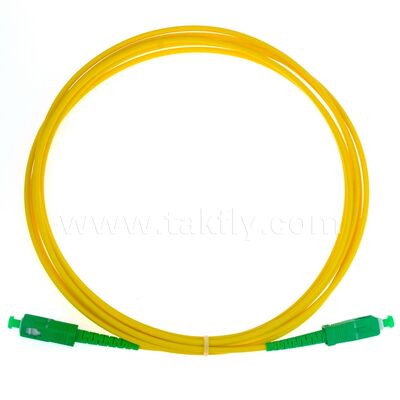

Type SC Fiber Optic Patchcord and Pigtail
High-quality Type SC Fiber Optic Patchcords and Pigtails designed for reliable performance in various networking applications.
Product Features
- Type SC Fiber Optic Patchcord and Pigtail configurations
- Single mode and Multimode options with PC, UPC, or APC polishing
- Multiple cable diameters: 0.9mm, 2.0mm, 2.4mm, or 3.0mm
- Available in simplex, duplex, and multi-core configurations (4, 6, 8, 12, 24, 48 core)
- Custom order lengths available
- Cable colors: green, yellow, orange, or customized designs
- Cable materials: PVC, Hytrel, LSZH, OFNP, OFNR
- All parts compliant with ROHS standards
- IEC standard compatible
- GR-326-CORE compliant
Applications
- Telecommunication systems
- CATV networks
- LAN & WAN infrastructure
- Network installations
- Broadband connectivity
- FTTH deployments
Appearance & Dimensions
Figure 1: SC-SC Patchcord 0.9mm
Figure 2: SC-SC Patchcord 2.0/3.0mm
Performance Parameters
| Item | Mode Type | PC | SPC | UPC | APC |
|---|---|---|---|---|---|
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB | |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB | |
| Repetition Test | Additional Loss≤0.1dB, Return Loss Variability<5dB | ||||
| Temperature Stability (-40℃～85℃) | Additional Loss≤0.2dB, Return Loss Variability<5dB | ||||
| Operating Temperature | -40℃～+75℃ | ||||
| Storage Temperature | -40℃～+75℃ | ||||
Order Information
| CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
|---|---|---|---|---|---|
| H02 | 1. SM Simplex 2. MM Simplex 3. APC Simplex 4. SM Duplex 5. MM Duplex 6. APC Duplex |
1. 0.9 2. 2.0 3. 3.0 |
1. 9/125 2. OM3 3. 50/125 4. 62.5/125 |
1. Yellow PVC 2. Orange PVC 3. White PVC 4. Yellow LSZH 5. Orange LSZH 6. White LSZH |
1. Blue 2. Beige 3. Green 4. Black 5. Blue and Yellow 6. Red and Black |
Why Choose TAKFLY
Our products are installed in major worldwide projects and trusted by leading operators. We maintain long-term partnerships with industry leaders including Lapp, Amper, Telefonica, Orange, Corning, Amphenol, SENKO, and Ericsson.
We welcome all inquiries and promise high quality, competitive pricing, and fast delivery service regardless of order size.
Frequently Asked Questions
- What's your MOQ?
MOQ can be 1 piece, but pricing becomes more competitive with larger quantities. - What's your lead time?
For fiber optic patch cords: 2-3 working days for up to 5,000 pieces. We maintain regular product stock and can accommodate urgent orders. - Are you a manufacturer?
Yes, we are a manufacturer and FTTH solution/data center total solution provider in Shenzhen, China, established in 2000. - How is your quality?
Our production follows IEC and European standards with CE, ISO, RoHS, CPR, and ANATEL certifications. All products are 100% tested before delivery. - What's your warranty?
1-year warranty for patch cords (non-artificial damage). For artificial damage, we provide free repair with freight paid by customer. - What's your packing?
International export standard packaging. Custom logo printing available upon request. - Can you quote FOB price?
Yes. We deliver by air, DHL, TNT, UPC, FEDEX, etc. Large quantities are shipped by sea. We provide quotes with freight and lead times based on your requirements. - Can you offer OEM/ODM?
Yes, all products accept OEM/ODM. We can sign Confidentiality Agreements. - Can I have a sample?
Free samples available for products under $10. Buyer pays freight. - How can I order?
1. Send inquiry with product details and quantity
2. We provide quotation with lead time
3. Confirm PI with bank account
4. Production begins after payment
5. Confirm consignee details
6. Receive tracking number after delivery - What is your payment term?
T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
