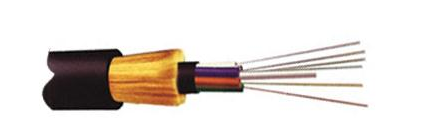

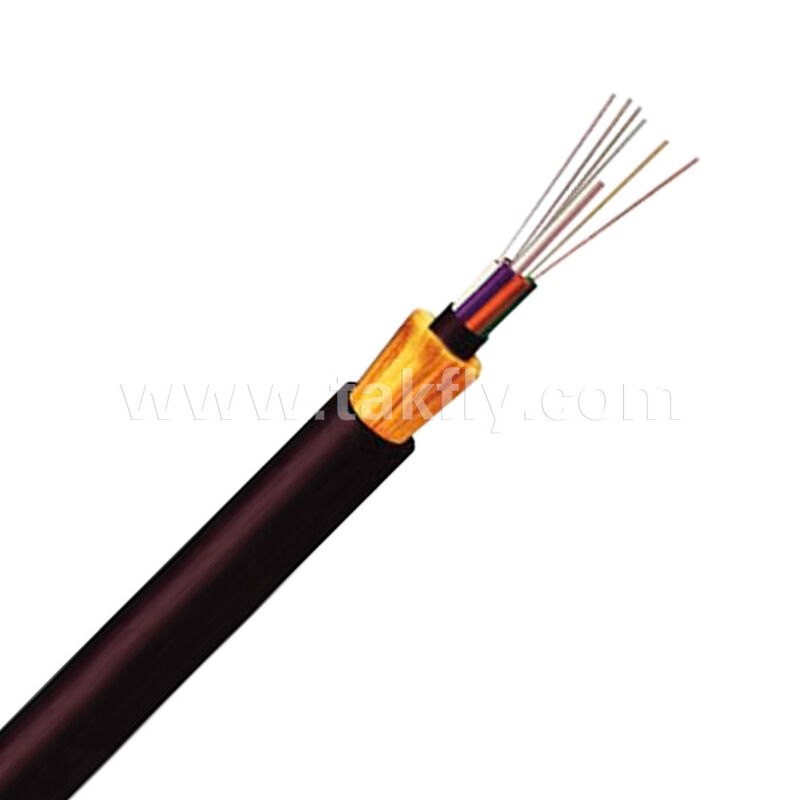

ADSS-100M All-Dielectric Self-Supporting Aerial Cable – 4 to 96 Fibers, 100m Span
Detalhes do produto:
| Lugar de origem: | Guangdong, shenzhen |
| Marca: | TAKFLY |
| Certificação: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Número do modelo: | DX-T1771 blindado |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 Picanha |
|---|---|
| Preço: | US$0.01 ~ US$1200/PC |
| Detalhes da embalagem: | espinha + caixa + cartão |
| Tempo de entrega: | 3-7 dias úteis |
| Termos de pagamento: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Informação detalhada |
|||
| Raio de curvatura: | 20D/15D | Instalação: | Aéreo |
|---|---|---|---|
| Bainha: | LSZH | Connetcor: | SC/PC para SC/PC |
| Diâmetro: | 8.5~16 mm | Tipo de cabo: | Modo único |
| Temperatura operacional: | -40°C a +70°C | Força de tração permitida: | 100n <1000n |
| Comprimento: | 2000 m por rolo ou sob medida | Número de fibras: | 2 núcleos/4 núcleo |
| Pacote de Transporte: | Tambor de madeira | Embalagem: | durm de madeira |
| Jaqueta: | PVC | Método de instalação: | Interior/Exterior |
| Tipo de conector: | LC/UPC | Contagem de fibras: | 12 |
| Materiais de casaco: | Educação Física | Essencial: | 12, opcional |
| Tempo de garantia: | 20 anos | Resistência a esmagamento: | ≥ 1000N/100mm |
| Estrutura do cabo: | Tipo de arco tampão apertado | Código do produto: | GJYXCH-1B |
| Material da bainha externa: | MDPE | Resistência à tracção: | ≥100N |
| Resistência à tração máxima: | 1000N | Modelo: | SC/APC~SC/APC |
| Perda de inserção: | 0,2dB | Diâmetro Externo: | 4.5 mm ou conforme pedido do cliente |
| material externo: | Cabos metálicos | Padrão: | IEC60794 |
| Membro da força: | OEM | Número da fibra: | 12 núcleos |
| Ano de fabricação: | 2010 | Cor da bainha externa: | Preto, cinzento, branco |
| Comprimento de onda de teste: | 1310 nm ~ 1550 nm | Modelo do cabo: | GJPFJV |
| Vibração: | ≤0,2dB | Pacote: | Ram de madeira |
| Reforço: | Ferro ou KFRP ou FRP | Bainha Externa: | Educação Física |
| Núcleo de fibra: | 2 ~ 144 núcleos | Taxa de dados: | 4*10G |
| Opções de fibra: | G652D, G657A,Om1,Om2,Om3,Om4 | Peso nominal: | 83 |
| Comprimento de onda de interrupção do cabo: | λcc≤1260um | Instale a maneira: | Poeira/instalação enterrada direta |
| Tubo: | Projeto de tubo solto | Material: | PE/LSZH |
| Porta: | Ningbo | Cor: | Amarelo ou personalizado |
| Material da jaqueta: | PVC | Número de núcleo: | conforme a sua petição |
| Envio: | TNT, DHL, UPS, FEDEX ou EMS | Interior ou Exterior: | Interior |
| Tamanho do tambor: | 300x300x300 | Comprimento da fibra: | 1m ou personalizado |
| Modo Fibra: | Modos únicos G652D G657A | Palavras-chave: | Cabo de ADSS |
| Rede: | 4g, 3G | OEM: | Bem-vindo |
| Número de condutor: | ≥ 10 | ||
| Destacar: | ADSS fiber optic cable 100m span,All-dielectric aerial cable 96 fibers,Self-supporting fiber optic cable 4 fibers |
||
Descrição de produto
ADSS-100M All-Dielectric Self-Supporting Aerial Cable – 4 to 96 Fibers, 100m Span
This non-metallic, fully dielectric overhead cable is designed for a standard span of 100 meters. Available fiber counts: 4, 6, 12, 24, 48, 96 (G.652D single‑mode). The cable can be installed directly on poles or towers without a steel messenger. Suitable for power transmission lines (10kV-220kV) and telecommunication networks.
Fiber Optical & Geometrical Data (G.652D)
Attenuation, Dispersion & PMD Parameters
| Parameter | Unit | Before Cabling | After Cabling |
|---|---|---|---|
| Attenuation @1310 nm | dB/km | ≤0.34 | ≤0.38 |
| Attenuation @1550 nm | dB/km | ≤0.21 | ≤0.28 |
| Zero dispersion wavelength | nm | 1300-1324 | - |
| Zero dispersion slope | ps/(nm²*km) | ≤0.092 | - |
| Cable cut‑off wavelength λcc | nm | ≤1260 | - |
| Dispersion coefficient @1550 nm | ps/(nm*km) | ≤18 | - |
| Dispersion coefficient @1625 nm | ps/(nm*km) | ≤22 | - |
| PMD (max. individual fiber) | ps/√km | ≤0.1 | - |
| PMD (link design, M=20, Q=0.01%) | ps/√km | ≤0.06 | - |
| PMD (typical) | ps/√km | 0.04 | - |
| Group index (typ.) @1310 nm | - | 1.466 | - |
| Group index (typ.) @1550 nm | - | 1.467 | - |
| Macro‑bend loss (1 turn, 16mm radius) @1550 nm | dB | ≤0.05 | - |
| Macro‑bend loss (100 turns, 25mm radius) @1550 nm | dB | ≤0.05 | - |
| Macro‑bend loss (100 turns, 30mm radius) @1550 nm | dB | ≤0.05 | - |
Fiber Geometry Specifications
| Parameter | Unit | Value |
|---|---|---|
| Cladding diameter | µm | 125 ± 0.7 |
| Cladding non‑circularity | % | ≤1.0 |
| Coating diameter | µm | 235-250 |
| Coating/cladding concentricity error | µm | ≤12.0 |
| Coating non‑circularity | % | ≤6.0 |
| Core/cladding concentricity error | µm | ≤0.6 |
| Mode field diameter (MFD) @1310 nm | µm | 8.7-9.5 |
| Mode field diameter (MFD) @1550 nm | µm | 9.8-10.8 |

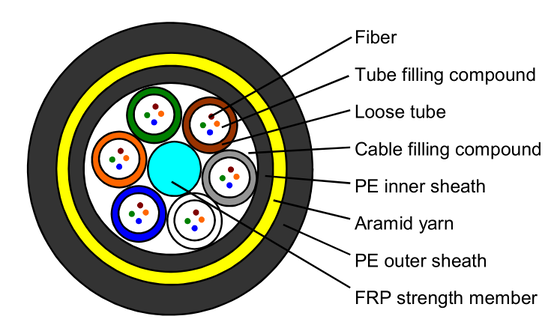

Cable Construction & Mechanical Specifications
The table below details loose tube stranded design for 24, 48 and 96 fibers. Configurations for 4, 6 and 12 fibers are available on request.
| Parameter | 24‑Fiber | 48‑Fiber | 96‑Fiber |
|---|---|---|---|
| Structure type | 1+6 | 1+6 | 1+8 |
| Central strength member (FRP) diameter | 2.0 mm | 2.0 mm | 2.0 / 3.7 mm |
| Loose tube material | PBT | PBT | PBT |
| Loose tube diameter | 2.0 mm | 2.0 mm | 2.0 mm |
| Number of loose tubes | 4 | 4 | 8 |
| Fibers per tube | 6 | 12 | 12 |
| Number of fillers | 2 | 0 | 0 |
| Water‑blocking | yarns + tape | yarns + tape | yarns + tape |
| Ripcords | 2 pieces | 2 pieces | 2 pieces |
| Peripheral strength member | Aramid yarns | Aramid yarns | Aramid yarns |
| Outer sheath material | MDPE (black) | MDPE (black) | MDPE (black) |
| Sheath nominal thickness | 1.7 mm | 1.7 mm | 1.7 mm |
| Cable diameter (±0.5 mm) | 9.5 mm | 10.0 mm | 11.8 mm |
| Cable weight (±10%, kg/km) | 70 kg/km | 75 kg/km | 110 kg/km |
| Maximum allowed tensile (MAT) | 2700 N | 2700 N | 2700 N |
| Span length | 100 m | 100 m | 100 m |
| Crush resistance - short term | 2200 N/100mm | 2200 N/100mm | 2200 N/100mm |
| Bending radius - operation | 15 × OD | 15 × OD | 15 × OD |
| Bending radius - installation | 25 × OD | 25 × OD | 25 × OD |
| Temperature - operation | -40℃ ~ +70℃ | -40℃ ~ +70℃ | -40℃ ~ +70℃ |
| Temperature - installation | -20℃ ~ +60℃ | -20℃ ~ +60℃ | -20℃ ~ +60℃ |
| Temperature - storage/shipping | -40℃ ~ +70℃ | -40℃ ~ +70℃ | -40℃ ~ +70℃ |
OD = Cable outer diameter
Packing, Drum & Cable Marking
| Item | Specification |
|---|---|
| Standard reel length | 2.0 - 4.0 km per wooden composite drum (export type) |
| Fumigation | Report and stamp provided upon request |
| Cable marking | Inkjet printed every meter: year, cable type, fiber count, length. Custom marking available. |
Applicable Standards
- DL/T 788‑2016 / YD/T 980‑2002
- IEC 60794‑4 / IEEE 1222
- Telcordia GR‑20
Ordering Options
| Model | Fiber Count | Span | Sheath Color |
|---|---|---|---|
| ADSS‑100M‑4X | 4 | 100 m | Black |
| ADSS‑100M‑6X | 6 | 100 m | Black |
| ADSS‑100M‑12X | 12 | 100 m | Black |
| ADSS‑100M‑24X | 24 | 100 m | Black |
| ADSS‑100M‑48X | 48 | 100 m | Black |
| ADSS‑100M‑96X | 96 | 100 m | Black |
For detailed construction drawings of 4/6/12‑fiber variants, please contact us.
