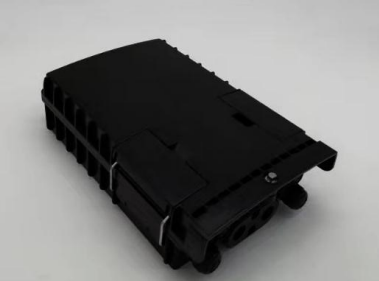

FTKS-1805-16GB 16 cores FAT Fiber Optic Distribution Box For FTTx Communication Network Building From China
Detalhes do produto:
| Lugar de origem: | China, Shenzhen |
| Marca: | DF/OEM/Nuetral |
| Certificação: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número do modelo: | Caixa da terminação da fibra dos portos FTKS-1805-96A 96 para a construção da rede de comunicação de |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | Negociável |
|---|---|
| Preço: | negotiable denpend on QTY |
| Detalhes da embalagem: | Caixa blister + caixa |
| Tempo de entrega: | 5-9 dias úteis dependendo do QTY |
| Termos de pagamento: | Western Union,T/T,MoneyGram/Paypal |
| Habilidade da fonte: | 1000 unidades/dia |
|
Informação detalhada |
|||
| Nome do produto: | Caixa da terminação da fibra dos portos FTKS-1805-96A 96 para a construção da rede de comunicação de | Temperatura de trabalho: | -40°C~+65°C |
|---|---|---|---|
| Adaptador: | SC Simplex/LC Duplex | Tipo de divisor: | 1*8/1*16 Mini Splitter tipo |
| Tamanho: | 289mm*183mm*83mm | Peso: | 0,9kg |
| Marca de fibra: | Corning, YOFC, OFS, Draka | ||
| Destacar: | 16-core FAT fiber optic box,FTTx fiber optic distribution box,Fiber optic termination box with warranty |
||
Descrição de produto
FTKS-1805-16GB 16-Core FAT Fiber Optic Distribution Box
Professional fiber termination box designed for FTTx communication network systems, serving as a critical connection point between feeder cables and drop cables.
Product Overview
This distribution box terminates up to 4 fiber optic cables, offers spaces for splitters and up to 16 fusions, allocates 16 SC adapters and operates in outdoor environments. It provides a cost-effective solution for FTTx networks.
Key Features
- Splice and patch cord separation structure for easy capacity expansion and maintenance
- High-quality plastic construction with attractive appearance
- Internal turnover structure for simplified maintenance
- Capacity for 16 SC adapters
- Compatible with mini-type splitters
- Supports 16 drop cable exits
- IP65 protection rating for outdoor use
Installation Instructions
Checking the product: Verify contents against packing list including documents and tools.
Fiber Optical Stripping and Fixing
- Open required holes at box bottom and install seal rings
- Cut seal rings according to cable size and thread cable through
- Adjust cable length, keeping approximately 0.5m extra cable
- Clean cable, cut cable protector around 0.4m, keep armored part at 30mm, fiber at 60mm
- Use insulating tape or heat shrink protector when stripping cable
- Thread fiber through hole, fix with clamp, and tighten screws
Trunk Optical Cable Splice and Route with Pigtail
- Strip fiber and pigtail (1.3m to 1.5m), then apply tube protector
- Open tray and splice fiber
- Place finished fiber into tray
- Secure fiber and pigtail
- Label fiber and record details
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions (H*W*D) | 289mm*183mm*83mm |
| Color | Black |
| Weight | 0.9 kg |
| Adapter Type | SC Simplex/LC Duplex |
| Adapter Capacity | 16 pcs |
| Splitter Type | 1*8/1*16 mini type splitter |
| Number of Cable Entrance(s) and Exit(s) | 4:16 |
| Cable inlet caliber | Two inlets are 14mm and the other two are 12mm |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Micro Splitter |
| Working Temperature | -40°C～+65°C |
Shipping Information
| Package Contents | Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; Wall mount accessories, 1 set |
|---|---|
| Package Dimensions(W*H*D) | 300mm*195mm*100mm |
| Material | Carton box |
| Weight | 1KG |
Why Choose TAKFLY?
Manufacturing Excellence
- 26+ years of specialized fiber optic manufacturing experience
- 450+ skilled assembly workers with 3+ years average experience
- 10+ dedicated R&D engineers for continuous product improvement
- 16 sets of German injection machines with 16 production lines
Quality Assurance & Testing
- 30+ advanced testing machines including OTDR, 3D, VFL, IL & RL test instruments
- Tension strength testers and crush resistance testers
- Power meter testers and comprehensive light checking equipment
Global Presence & Customization
- OEM branding services available
- Active participation in major international exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control Process
- Raw material inspection before production begins
- Full inspection after each manufacturing process
- Comprehensive half-done production quality checks
- Complete finished product inspection before packaging
- Final spot check verification before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging options: Plastic bag, carton, and pallet available according to customer requirements
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our comprehensive catalogue and current price list.
Q2: Can I negotiate the prices?
A2: Yes, we offer competitive pricing and may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on your shipment size and preferred shipping method. We provide detailed cost breakdowns upon request.
Q4: Can I visit your facility?
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment for a facility tour.
Q5: What if there is a quality problem when we receive the goods?
A5: If you encounter quality issues upon unpacking, please document with photos for our reference. Our QC department will investigate thoroughly and provide optimal solutions, implementing improvements for future production.
Q6: What are your packing terms?
A6: Standard packaging includes blister boxes and cartons. We accommodate custom packaging requests to meet specific customer requirements.
Q7: What are your payment terms?
A7: Standard terms: T/T 30% deposit, 70% balance before delivery. We provide product and packaging photos before final payment.
Q8: What are your delivery terms?
A8: We support EXW, FOB, CFR, CIF, and DDU delivery terms to accommodate global shipping requirements.
Q9: What is your delivery time?
A9: Standard delivery: 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we specialize in manufacturing products based on customer samples or technical drawings with precision and quality.
If you're interested in our fiber optic products or have any technical questions, our engineering team is available to assist you at any time!
