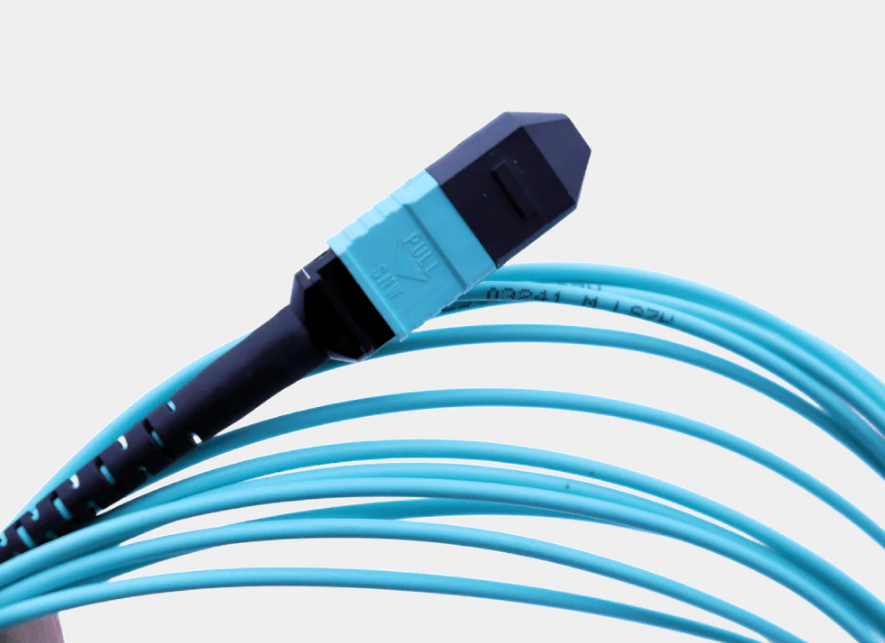

MPO MTP High‑Density Multi‑Fiber Patch Cord – 8/12/24 Cores, Low Loss, 500 Mating Cycles, IEC & TIA Compliant
Detalhes do produto:
| Lugar de origem: | Shenzhen, China |
| Marca: | Takfly/OEM |
| Certificação: | CE, ISO, RoHS, GS |
| Número do modelo: | Cabo de remendo de MPO/MTP |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1PCS |
|---|---|
| Preço: | US $9.88-US $19.88/ Pcs |
| Detalhes da embalagem: | Os PP ensacam então na caixa |
| Tempo de entrega: | dia 3-7working |
| Termos de pagamento: | L/C, T/T, Western Union, Paypal |
| Habilidade da fonte: | 50000 unidades/mês |
|
Informação detalhada |
|||
| Essencial: | Multinúcleo | Conector A: | SC |
|---|---|---|---|
| Conector B: | MPO/MTP | Modo Fibra: | 50/125um |
| Diâmetro do cabo: | 0.9/2.0/3.0 | Tipo polonês: | PC/APC |
| Perda de retorno: | MM/PC:20dB/SM/APC:60dB | Perda de inserção: | 00,35 dB Max (0,15 dB Tipicamente) |
| Material da bainha externa: | PVC/LSZH | Radius de curvatura estático/dinâmico: | 10D/20D |
| Código Hs: | 854470000 | Gênero: | Masculino / Feminino |
| Destacar: | MPO MTP patch cord 24 cores,MPO MTP fiber cable low loss,MPO MTP patch cord IEC compliant |
||
Descrição de produto
MPO MTP High-Density Multi-Fiber Patch Cord
8/12/24 Cores, Low Loss, 500 Mating Cycles, IEC & TIA Compliant
Product Overview
The MPO/MTP multi-fiber connector series is engineered for high-density optical interconnections in data centers, telecom central offices, CATV headends, and industrial environments. A precision-molded MT ferrule combined with high-accuracy guide pins ensures exact alignment of up to 24 fibers in a single interface. Two performance grades—standard and low-loss—are available to match diverse link budget requirements. All products meet IEC 61754-7 and EIA/TIA-604-5, with 100% factory testing.
Key Features
- Precision molded MT ferrule for consistent core geometry
- High-precision guide pins for reliable alignment after repeated mating
- Supports 4, 8, 12, or 24 fibers in a compact form factor
- Standard loss (≤0.35dB typ. / ≤0.70dB max) and low loss (≤0.20dB typ. / ≤0.35dB max)
- Compatible with single-mode (G652, G655, G657) and multi-mode (OM1-OM5) fibers
- Multiple cable types: mini round (≤4.5mm OD) or ribbon (≤3.0×5.0mm)
- Jacket options: PVC or LSZH (low smoke, halogen-free)
- Polarity management: Type A, B, C with color coding and labeling
Enhanced Performance Characteristics
Mechanical Durability
- Mating cycles: ≥500 (insertion loss variation ≤0.2dB)
- Tensile strength: ≥50N for 2.0mm cable (connector to cable)
- Vibration & shock: Meets GR-1435-CORE requirements for industrial use
Environmental Reliability
- Damp heat cycling: -10℃ to +65℃, 93% RH, 5 cycles → IL variation ≤0.3dB
- High-temperature aging: 85℃ for 168 hours → IL variation ≤0.3dB
- Low-temperature storage: -40℃ for 24 hours → IL variation ≤0.2dB
Polarity Management Support
- Type A (straight): Key position parallel to fiber position
- Type B (reversed): Key reversed, fiber position mirrored
- Type C (pairwise): Adjacent fiber pairs swapped
- Color-coded boots and labels available for easy identification
Compatibility
Fully compatible with all standard MTP/MPO adapters and equipment ports (QSFP-DD, OSFP, SFP-DD, etc.). Male (pins) and female (no pins) versions available.
Technical Specifications
| Parameter | LC, SC, ST, FC (Single-Fiber) | MPO/MTP (Multi-Fiber) |
|---|---|---|
| End face type | UPC / APC | PC / APC |
| Fiber type | SM (G652, G655, G657); MM (OM1-OM5) | Same |
| Core count | 8, 12, 24 | Same |
| Cable diameter | 0.9 / 2.0 / 3.0 mm | Mini round: ≤4.5 mm Ribbon: ≤3.0×5.0 mm |
| Insertion loss (standard grade) | ≤0.3 dB (single-fiber) | Typ. ≤0.35 dB / Max ≤0.70 dB |
| Insertion loss (low loss grade) | -- | Typ. ≤0.20 dB / Max ≤0.35 dB |
| Return loss (min.) | UPC SM: 40dB; APC SM: 60dB; UPC MM: 25dB | SM APC: 60dB; MM PC: 20dB |
| Test wavelength | SM: 1310/1550 nm; MM: 850/1300 nm | Same |
| Repeatability | ≤0.1 dB | Same |
| Durability | ≤0.2 dB | Same |
| Interchangeability | ≤0.2 dB | Same |
| Operating temperature | -20℃ ~ +70℃ | Same |
| Storage temperature | -40℃ ~ +80℃ | Same |
| Outer sheath material | PVC / LSZH | Same |
| Bending radius (static/dynamic) | 10D / 20D | Same |
| Length | Customized | Customized |
| Mating cycles | -- | ≥500 (ΔIL ≤0.2dB) |
| Tensile strength (2.0mm cable) | -- | ≥50N |
| Damp heat test | -- | ΔIL ≤0.3dB after 5 cycles |
| High-temp aging | -- | ΔIL ≤0.3dB after 168h @85℃ |
Application Scenarios
Data Center - 40G/100G/400G Links
Example: 12-fiber low-loss MPO patch cord connecting QSFP-40G-SR4 to the patching area.
Benefit: Replaces 4 duplex LC pairs, saves 75% of cable tray space.
Benefit: Replaces 4 duplex LC pairs, saves 75% of cable tray space.
Telecom Central Office - Backbone Upgrade
Example: 24-fiber MPO ribbon cable connecting ODF sub-racks with MPO-LC breakout modules.
Benefit: Rapid deployment, ready for 400G coherent optics.
Benefit: Rapid deployment, ready for 400G coherent optics.
Industrial - Ruggedized Interconnect
Example: Vibration-resistant MPO jumper, operating temp -40℃ to +85℃, passed shock & vibration testing.
Benefit: Salt spray and mold resistance for harsh environments.
Benefit: Salt spray and mold resistance for harsh environments.
CATV Headend - Multi-Channel Video Distribution
Example: 1×12 MPO splitter feeding 12 optical receivers.
Benefit: High density, reduces cable clutter.
Benefit: High density, reduces cable clutter.
Competitive Advantages
| Comparison | Standard MPO | This MPO/MTP Series |
|---|---|---|
| Typical insertion loss | 0.5 dB | 0.35 dB (std) / 0.20 dB (low loss) |
| Mating cycles | 200 | ≥500 |
| Max operating temp | 70℃ | 85℃ (short-term), 70℃ (long-term) |
| Polarity management | Optional | Full Type A/B/C with color coding |
| Environmental test data | Not specified | Damp heat, thermal cycle, vibration reports |
| Custom lengths | Limited | Any length from 0.5m to 200m |
Ordering & Customization
| Customization Option | Choices |
|---|---|
| Core count | 8, 12, 24 |
| Loss grade | Standard / Low loss |
| Cable type | Mini round / Ribbon |
| Outer sheath | PVC / LSZH |
| End face | PC / APC |
| Polarity | Type A / B / C |
| Connector gender | Male (with pins) / Female (without pins) |
| Length | 0.5 m ~ 200 m |
| Breakout fanout | MPO to LC/SC breakout cables available |
Ordering code example:
MPO-12-LL-ROUND-LSZH-3M-APC-TYPEA-MALEQuality Assurance & Certifications
- 100% IL & RL tested - Each patch cord comes with a test report
- 3D interferometer inspection - Radius of curvature, fiber height, offset per IEC standards
- RoHS & REACH compliant
- UL listed (for LSZH materials)
Product Summary
This MPO/MTP multi-fiber patch cord series offers standard and low-loss grades, enhanced mechanical durability (≥500 mating cycles), proven environmental stability (damp heat, high-temp aging), and full polarity management (Type A/B/C). It is ideal for high-density, high-reliability fiber interconnections in data centers, telecom, CATV, and industrial applications. All specifications are factory-tested, and custom configurations are available.
