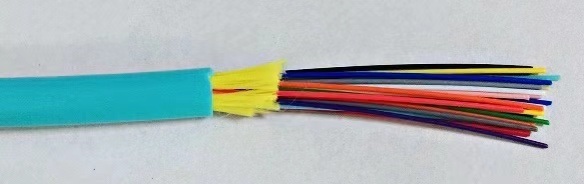

Indoor Bundle Optical Cable 2000M LSZH/PVC/PU
Detalhes do produto:
| Lugar de origem: | China, Shenzhen |
| Marca: | DF/OEM/Nuetral |
| Certificação: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número do modelo: | TK-PC-48F-SC-OS2-50M |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | Negociável |
|---|---|
| Preço: | negotiable denpend on QTY |
| Detalhes da embalagem: | Caixa blister + caixa |
| Tempo de entrega: | 5-9 dias úteis dependendo do QTY |
| Termos de pagamento: | Western Union, T/T, MoneyGram/Paypal |
| Habilidade da fonte: | 1000pcs/dia |
|
Informação detalhada |
|||
| Nome do produto: | Cabo óptico de pacote interno | Diâmetro externo (milímetros): | 3,0-12,5 mm |
|---|---|---|---|
| Contagem de fibras: | 2-48 | Reforço do núcleo: | Fio Aramid |
| Material: | Aço inoxidável | Material da jaqueta: | LSZH/PVC |
| Cor: | Branco e azul ou personalizado | Comprimento de onda: | 1310nm, 1550nm |
| Diâmetro(±1µm): | 125μm | Diâmetro do revestimento(±5µm): | 250 μm |
| Temperatura de operação: | -20 ℃ ~ 70 ℃ | Comprimento: | 2000m ou personalizado |
| Marca de fibra: | Corning, YOFC, OFS, Draka | ||
| Destacar: | Indoor fiber optic cable 2000M,LSZH optical cable bundle,PVC PU fiber optic cable |
||
Descrição de produto
Indoor Bundle Optical Cable 2000M LSZH/PVC/PU
2-48 core beam optical cable uses Φ900μm compact fiber as the optical transmission medium, and the coated aramid yarn is used as a force strengthening unit. The outermost layer of polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low smoke, halogen-free, flame retardant) jacket.
Product Applications
- Optical fiber active connection jumper or tail fiber
- Indoor shaft stage and forced ventilation level wiring
- Interconnection of instruments and communication equipment
Product Features
- Adopt a tight sleeve optical fiber for easy stripping
- Aramid yarn reinforced element makes the optical cable have excellent tensile resistance
- Multi-core number and small outer diameter, non-metal center strengthening structure
- Good performance of flame-retardant, low induced attenuation within the operating temperature range
- Meet various requirements of market and clients
Optical Parameter and Properties
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius(mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | 7.5 |
Product Structure
| Fiber count | 2-48 |
|---|---|
| Optical fiber | Diameter(±1µm): 125µm Coating diameter(±5µm): 250µm |
| Tight buffer | Diameter(±50µm): 900µm |
| Sheath material | PVC/LSZH Color: White or Other colors available upon request |
| Strength member | Core reinforce: Aramid yarn |
| Outer sheath | Sheath material: PVC/LSZH Color: Yellow for single mode cable, Orange for multi mode cable; Or other colors available upon request |
| Cable | Outside diameter(mm) | Cable weight (kg/km) | Max tensile force(N) | Crush resistance (N/100mm) | Min bend radius(D) | Running temperature |
|---|---|---|---|---|---|---|
| 2 | 3.0 | 9 | 60/120 | 1000 | 20/10 | -20 ℃ ~+70 ℃ |
| 4 | 4.8 | 22 | 80/150 | 1000 | 20/10 | -20 ℃ ~+70 ℃ |
| 6 | 5.2 | 25 | 80/150 | 1000 | 20/10 | -20 ℃ ~+70 ℃ |
| 8 | 5.5 | 27 | 100/300 | 1000 | 20/10 | -20 ℃ ~+70 ℃ |
| 10 | 5.6 | 30 | 150/450 | 1000 | 20/10 | -20 ℃ ~+70 ℃ |
| 12 | 6.0 | 35 | 200/600 | 1000 | 20/10 | -20 ℃ ~+70 ℃ |
| 24 | 8.0 | 60 | 250/700 | 1000 | 20/10 | -20 ℃ ~+70 ℃ |
| 36 | 10.0 | 90 | 300/800 | 1000 | 20/10 | -20 ℃ ~+70 ℃ |
| 48 | 12.5 | 120 | 500/1200 | 1000 | 20/10 | -20 ℃ ~+70 ℃ |
Product Picture
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
