Outdoor Waterproof Optical Cable PE/AT 2-12F
Detalhes do produto:
| Lugar de origem: | China, Shenzhen |
| Marca: | DF/OEM/Nuetral |
| Certificação: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número do modelo: | TK-PC-48F-SC-OS2-50M |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | Negociável |
|---|---|
| Preço: | negotiable denpend on QTY |
| Detalhes da embalagem: | Caixa blister + caixa |
| Tempo de entrega: | 5-9 dias úteis dependendo do QTY |
| Termos de pagamento: | Western Union, T/T, MoneyGram/Paypal |
| Habilidade da fonte: | 1000pcs/dia |
|
Informação detalhada |
|||
| Nome do produto: | Cabo óptico à prova d'água externo | Contagem de fibras: | 2 a 12 |
|---|---|---|---|
| Diâmetro da fibra óptica (±1µm): | 125μm | Diâmetro do revestimento de fibra óptica (± 5 µm): | 250 μm |
| Diâmetro da subunidade (mm): | 2-3mm | Reforço do núcleo: | Fio Aramid |
| Material de protecção: | APL | Material da bainha: | TURFA |
| Cor: | Preto | Extensão(M): | 50m |
| Temperatura de operação: | -20 ℃ ~ 70 ℃ | Marca de fibra: | Corning, YOFC, OFS, Draka |
| Destacar: | Outdoor waterproof fiber optic cable,PE/AT fiber optic cable,2-12F fiber optic cable |
||
Descrição de produto
Outdoor Waterproof Optical Cable PE/AT 2-12F

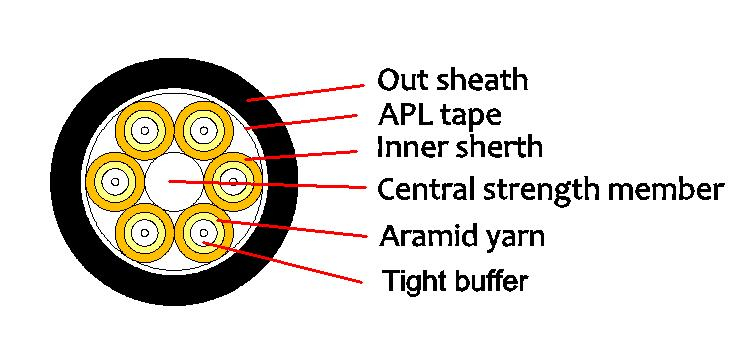

GJA waterproof optical cable uses simplex cable (Φ900µm tight buffer fibre, aramid yarn as strength member) as subunit. A fibre reinforced plastic (FRP) or Steel wire locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. An aluminum polyethylene laminate is applied around the cable core. The cable is completed with a PE jacket.
Product Applications
- Optical fiber active connection jumper or tail fiber
- Indoor any purpose cable distribution
- Interconnect from outdoor to indoor for optical cable distribution equipment
Product Features
- Adopt a tight sleeve optical fiber for easy stripping
- Stranded strength member structure ensure the cable endure larger tensile strength
- The outer jacket material have many advantages such as anti-corrosion, anti-water and anti-ultraviolet radiation etc
- APL moisture barrier
- Meet various requirements of market and clients
Optical Parameter and Properties
Product Structure
Other Requirements
- Length of production optical cable: 2000M
- Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GJA 12C 14.8 SM G652D MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
