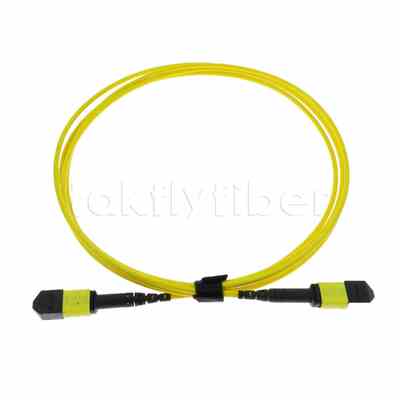

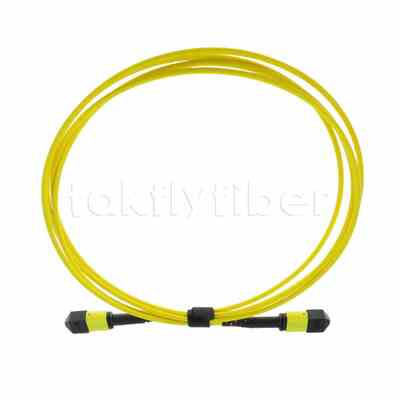

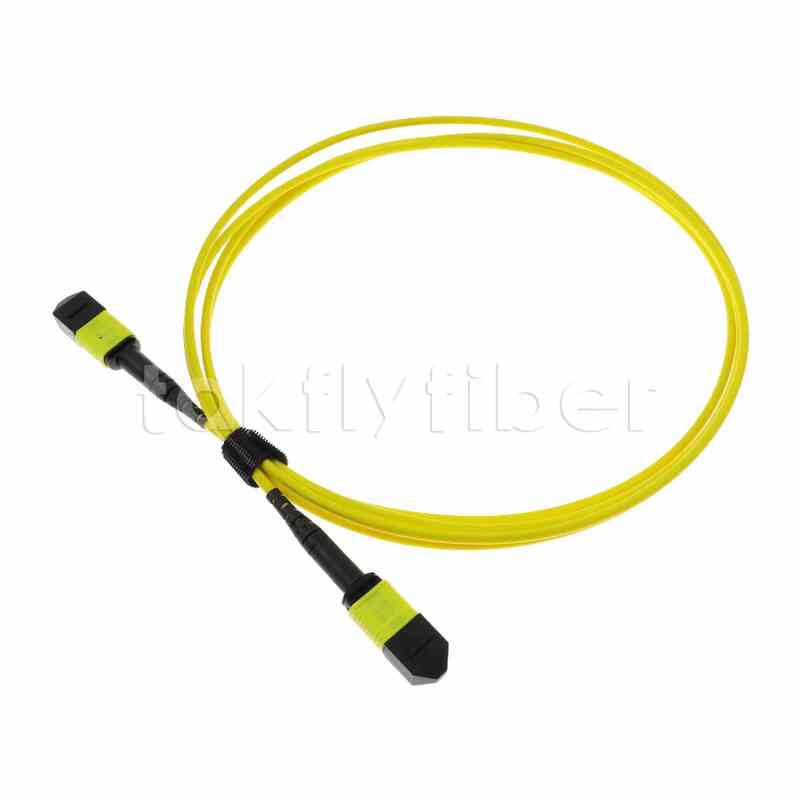

5M MTP® MPO Trunk Cable, MTP®-12 APC (Female) to MTP®-12 APC (Female), 12 Fibers, OS2 Plenum (OFNP), 0.35dB Max
Detalhes do produto:
| Place of Origin: | Shenzhen, China |
| Marca: | Neutral/OEM/Takfly |
| Certificação: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Model Number: | TK-PC-MPO-12/24F-OS2 |
Condições de Pagamento e Envio:
| Minimum Order Quantity: | 1 |
|---|---|
| Preço: | US$0.01~US$25.99/PC |
| Packaging Details: | PE bag |
| Delivery Time: | 3-7working days |
| Payment Terms: | Western Union, L/C, T/T,Paypal |
| Supply Ability: | 500PCS/Day |
|
Informação detalhada |
|||
| Cores: | 12/24 | Fiber Type: | SM SM G657A1/G657A2 |
|---|---|---|---|
| Length: | 1M/5M/15M or customized | Cable Diameter: | 3.0mm |
| Connector Type: | MPO/MTP | Insertion Loss: | Low loss: 0.35dB |
| Return Loss: | SM APC: 60dB | Cable Jacket: | LSZH/OFNP |
| Cable Color: | Yellow | Application: | Data Center, Telecom, Network |
| Certificação: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | Product Name: | Plenum (OFNP) 0.35dB Max Type B MPO Male to MPO Female Fiber Patch Cable |
| Destacar: | 5M MTP MPO trunk cable,MTP-12 APC female trunk cable,OS2 plenum fiber optic cable |
||
Descrição de produto
5M MTP® MPO Trunk Cable
MTP®-12 APC (Female) to MTP®-12 APC (Female), 12 Fibers, OS2 Plenum (OFNP), 0.35dB Max
5M MTP® MPO Trunk Cable, MTP®-12 APC (Female) to MTP®-12 APC (Female), 12 Fibers, OS2 Plenum (OFNP), 0.35dB Max
Takfly's MTP/MPO cable has 8/12/24 cores for 40G/100G applications. The latest 16-fiber cable is designed for short-range 400G cabling in hyperscale data centers.
An 8-MTP/MPO cable system is more cost-effective since it can transfer data at the same pace as a 12-fiber line with less money and insertion loss.
The 12-fiber MTP/MPO cable was the first and most widely used 10G-40G, 40G-100G connection option. Four fibers will remain idle if employed in a 40G QSFP+ or 100G QSFP 28 transceiver, leading in poor fiber utilization.
24-fiber MTP/MPO cables are utilized to build a 100 GBASE-SR 10 link between CFP and CFP transceivers.
16-fiber MTP/MPO cables aggregate numerous 8-fiber parallel transceivers and couple directly to 16-fiber parallel fiber links, such as 400G QSFP-DD and OSFP.
MPO Fiber Optic Patch Cable Features & Specifications
| Item | LC / SC / ST / FC | MPO / MTP |
|---|---|---|
| End face type | PC / UPC / APC | PC and APC |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) | |
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | |
| Cable Diameter | 0.9 / 2.0 / 3.0 | Mini Round cable: Max 4.5mm； Ribbon cable: Max 3.0*5.0mm |
| Insertion loss(dB) | ≤ 0.3 | Standard: ≤0.35/0.7(Typical/Max) Low Loss: ≤0.2/0.35(Typical/Max) |
| Return loss(Min) | UPC SM:40dB APC SM:60 dB PC MM:25 dB | SM: APC:60dB | MM: PC:20dB |
| Test Wavelength(nm) | SM:1310/1550 MM:850/1300 | |
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | OFNP/LSZH | |
| Bending radius(Static/Dynamic) | 10D/20D | |
| Length | Customized | |
Features
- Fiber and Cable Options
- Available in SM (G.657A1), OM4
- Compact LSZH cable jackets available
- Jacket Standard Colours: G.657A1 - Yellow, OM4 - Aqua or Erika Violet
MPO Interface
- Female and Male MPO connectors available
- Base-8, Base-12 available (for Base-16, and Base-24 contact sales rep)
- Standards-based polarity options available
- Base 8 - Pol B/QSFP
- Base 12 - Polarity A, B & C.
Optimized Performance
- Low-loss Premium MPO connectors and Bend Insensitive fiber assure low insertion losses and reduced power penalties in tight budget high-speed network environments
- 100% factory tested for proven reliability and connectivity
- Manufactured in accordance with TIA 568 and IEC 61754 standards
Benefits
Next Generation Network Speeds
- Assemblies can be used throughout multiple active equipment upgrades in order to future-proof your network
- Modular connectivity support 400G/800G migration plans
- Factory terminated assembly saves installation and reconfiguration time during moves, adds and changes
- Configurable length assemblies reduce slack management, patch field congestion, and improved air-flow
Applications
- Data Center
- Campus
- Central Office
- Office Backbone
Q: Are MPO and MTP interchangeable?
A: MPO is a fiber optic connector - MPO standing for "Multi-fiber Push On" which was originally developed and licensed by NTT Group. Licensing led to several variants of MPO, and MTP®, meaning "Multi-Fiber Termination Push-on" and trademarked by US Conec for their MPO connector, provided some added functionality over MPO in the early years of development. However, over the years the divergence between the two types of connectors has narrowed, with many MPO connectors now offer the same performance and even additional features over MTP. MPO and MTP connectors are 100% compatible and interchangeable. MPO and MTP connectors both conform to SNAP (form factor and multiplex push-pull coupling) and are fully compliant with IEC-61754-7 and TIA-604-5 (FOC155).
Q: Is MTP better than MPO?
A: The distinction between MTP (Multi-Fiber Termination Push-On) and MPO (Multi-Fiber Push-On) lies in the trademark. Functionally, both MTP and MPO connectors serve the same purpose, offering high-density multi-fiber connectivity. The choice between them depends on the application requirements, cost considerations, and adherence to specific standards. In practice, people often use the terms interchangeably, but it's essential to understand the specific context and whether adherence to US Conec's standards is necessary for the given application.
Q: How should I choose between MPO and MTP?
A: In essence, the choice between MTP and MPO depends on the specific requirements of the connection scenario. MTP and MPO have their own advantages depending on the specific needs of the application. MPO connectors have a wider availability and may be more cost-effective on some projects. MTP can better meet the requirements for high performance and high reliability, but it will also be relatively more expensive. Besides, don't forget to ensure compatibility with existing infrastructure and check the availability of connectors from your preferred supplier.
Q: Can MPO/MTP patch cords be customized for specific applications?
A: Yes, all Takfly's MPO/MTP patch cords offer extensive customization options to suit specific applications. Fiber counts, connector types (MPO or MTP, male or female), fiber modes (single-mode or multimode), cable lengths, jacket types (LSZH, OFNR, OFNP, PVC), connector polarity and so on, are among the parameters that can be tailored to meet the unique requirements of your network or data center.
Why Choose TAKFLY - Advantages
- Professional manufacturer: More than 25 years manufacturing experience in Fiber optic products - one stop purchasing
- More than 450 assembly workers with 3 years experience
- More than 26 R&D Engineers
- 16 Sets Germany imported Injection Machine and More than 10 Cable Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Worldwide Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, ICT, ISE, Fiberdays, AOTEC, etc.
- After-sales Services: Available for 24 hours
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
Shipping
- DHL, UPS, FEDEX, TNT, EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients
- By Sea or By Air, could use your own pointed forwarder or our cooperated one
Payment Term
T/T, Paypal, Western Union and L/C are available.
Price
If your QTY is big, the price could be negotiated.
I have been working in this field more than 10 years, I believe, I could give you very good service and professional answers!
If you're interested in our products or have any doubt, why not send me inquiry at once?
