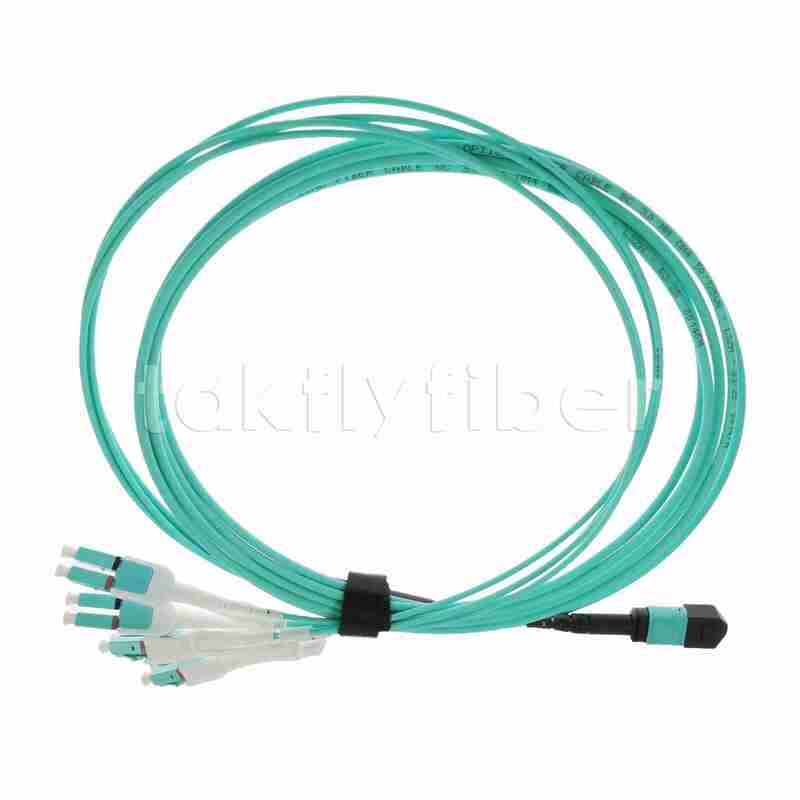

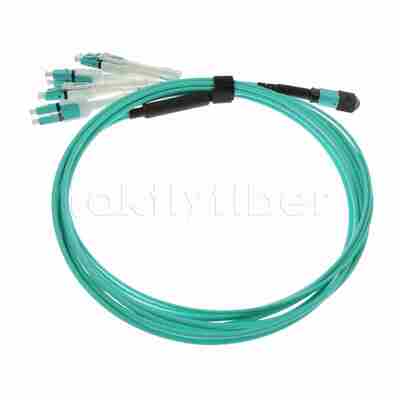

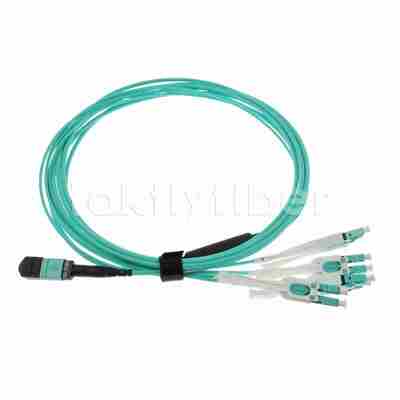

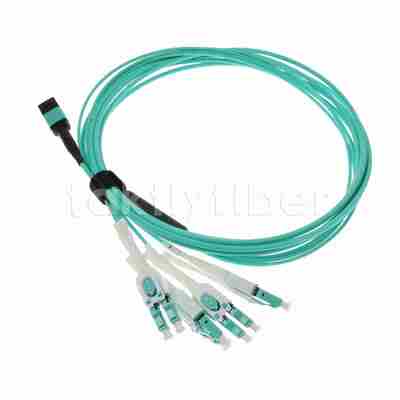

12F Fiber Optic Harness MPO-LC Uniboot MPO Breakout Patch Cable, Plenum (OFNP), 0.35dB Max.
Detalhes do produto:
| Place of Origin: | Shenzhen, China |
| Marca: | Neutral/OEM/Takfly |
| Certificação: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Model Number: | TK-PC-MPO-8F-OM3-4LCDU-005 |
Condições de Pagamento e Envio:
| Minimum Order Quantity: | 1 |
|---|---|
| Preço: | US$0.01~US$25.99/PC |
| Packaging Details: | PE bag |
| Delivery Time: | 3-7working days |
| Payment Terms: | Western Union, L/C, T/T,Paypal |
| Supply Ability: | 500PCS/Day |
|
Informação detalhada |
|||
| Cores: | 8F | Fiber Type: | MM OM3 |
|---|---|---|---|
| Length: | 1M/5M/15M or customized | Cable Diameter: | 3.0mm |
| Connector Type: | MPO/MTP, LC Uniboot | Insertion Loss: | Low loss: 0.35dB |
| Return Loss: | MM ≥20dB | Cable Jacket: | LSZH/OFNP |
| Cable Color: | Yellow | Application: | Data Center, Telecom, Network |
| Certificação: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | Product Name: | 12F Fiber Optic Harness MPO-LC Uniboot MPO Breakout Patch Cable, Plenum (OFNP), 0.35dB Max. |
| Destacar: | 12F fiber optic harness MPO-LC,MPO breakout patch cable plenum,Uniboot MPO cable low loss |
||
Descrição de produto
12F Fiber Optic Harness MPO-LC Uniboot MPO Breakout Patch Cable, Plenum (OFNP), 0.35dB Max.
Takfly's MPO-LC Uni-boot Harness provides fast and precise connections from patch panels to high-density servers and switches. The furcation housing is extremely compact and with a cable diameter of only 3 mm, the single cord construction reduces cable consumption by as much as 50% compared to conventional Figure 8 duplex cables. Harnesses can be supplied with straight tails or staggered tails to match the particular equipment and port numbering scheme on the equipment.
MPO Patch Cords use a compact and rugged cable that optimizes space in patching areas and contributes to improved airflow. MPO Patch Cords facilitate rapid deployment of high-density cabling in data centers or other high fiber density environments, reducing network installation or reconfiguration time and cost. Utilize these assemblies for quick and easy patching between data center zones or to interconnect MPO active equipment ports.
MPO Fiber Optic Patch Cable Specifications
| Item | LC / SC / ST / FC | MPO / MTP |
|---|---|---|
| End face type | PC / UPC / APC | PC and APC |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) | |
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | |
| Cable Diameter | 0.9 / 2.0 / 3.0 | Mini Round cable: Max 4.5mm； Ribbon cable: Max 3.0*5.0mm |
| Insertion loss(dB) | ≤ 0.3 | Standard: ≤0.35/0.7(Typical/Max) Low Loss: ≤0.2/0.35(Typical/Max) |
| Return loss(Min) | UPC SM:40dB APC SM:60 dB PC MM:25 dB | SM: APC:60dB | MM: PC:20dB |
| Test Wavelength(nm) | SM:1310/1550 MM:850/1300 | |
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | OFNP/LSZH | |
| Bending radius(Static/Dynamic) | 10D/20D | |
| Length | Customized | |
Features
- Fiber and Cable Options
- Available in SM (G.657A1), OM4
- Compact LSZH cable jackets available
- Jacket Standard Colours: G.657A1 - Yellow, OM4 - Aqua or Erika Violet
MPO Interface
- Female and Male MPO connectors available
- Base-8, Base-12 available (for Base-16, and Base-24 contact sales rep)
- Standards-based polarity options available
- Base 8 - Pol B/QSFP
- Base 12 - Polarity A, B & C
Optimized Performance
- Low-loss Premium MPO connectors and Bend Insensitive fiber assure low insertion losses and reduced power penalties in tight budget high-speed network environments
- 100% factory tested for proven reliability and connectivity
- Manufactured in accordance with TIA 568 and IEC 61754 standards
Benefits
- Next Generation Network Speeds
- Assemblies can be used throughout multiple active equipment upgrades in order to future-proof your network
- Modular connectivity support 400G/800G migration plans
- Factory terminated assembly saves installation and reconfiguration time during moves, adds and changes
- Configurable length assemblies reduce slack management, patch field congestion, and improved air-flow
Applications
- Data Center
- Campus
- Central Office
- Office Backbone
Polarity
Takfly MTP MPO Patch Cable Production Flow Diagram
Why Choose TAKFLY - Advantages
Professional Manufacturer
- More than 25 years manufacturing experience in Fiber optic products - one stop purchasing
- More than 450 assembly workers with 3 years experience
- More than 26 R&D Engineers
- 16 Sets Germany imported Injection Machine and More than 10 Cable Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Worldwide Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, ICT, ISE, Fiberdays, AOTEC, etc.
- After-sales Services: Available for 24 hours
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
Shipping
- DHL, UPS, FEDEX, TNT, EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients
- By Sea or By Air, could use your own pointed forwarder or our cooperated one
Payment Terms
- T/T, Paypal, Western Union and L/C are available
- Price: If your QTY is big, the price could be negotiated
