Qualidade Flat band Optical Cable 2-24F for Data Centers Fábrica
<
Qualidade Flat band Optical Cable 2-24F for Data Centers Fábrica
>

Flat band Optical Cable 2-24F for Data Centers

Resumo do Produto

Flat Band Optical Cable 2-24F for Data Centers Product Overview Flat band optical cable 4-24 core featuring φ250μm color fiber as optical communication medium. The color fibers are wrapped in a layer of aramid yarn as a force strengthening unit, which is coated with polyvinyl chloride (PVC) or low...

Product Custom Attributes

Nome do produto:
Cabo óptico de banda plana 2-24F para data centers
Atenuação SM:
Típico 0,36/0,22
Diâmetro do revestimento (µm):
125±1,0
Atenuação MM:
Típico 3.0/1.0
Contagem de fibra óptica:
4-24ºC
Cor da fibra óptica:
1. Branco 2. Azul 3. Laranja 4. Verde 5. Marrom 6. Cinza7. Vermelho 8. Preto 9. Amarelo 10. Violeta
Reforço do núcleo:
Fio de aramida
Material da bainha:
PVC, LSZH
Diâmetro da bainha:
3,0±0,1 mm
Faixa de temperatura:
-20℃-+70℃
Garantia:
5 anos, manutenção vitalícia
Marca de fibra:
Corning, YOFC, OFS, Draka
Destacar:

flat band fiber optic cable

,

optical cable for data centers

,

24F flat band cable

Propriedades básicas

Lugar de origem:
China, Shenzhen
Marca:
DF/OEM/Nuetral
Certificação:
CE/ROHS/REACH/ISO9001/ISO14001
Número do modelo:
Cabo óptico de banda plana 2-24F para data centers

Propriedades comerciais

Quantidade de ordem mínima:
Negociável
Preço:
negotiable denpend on QTY
Detalhes da embalagem:
Caixa blister + caixa
Tempo de entrega:
5-9 dias úteis dependendo do QTY
Termos de pagamento:
Western Union,T/T,MoneyGram/Paypal
Habilidade da fonte:
1000pcs/dia

Descrição do produto

Flat Band Optical Cable 2-24F for Data Centers
Product Overview

Flat band optical cable 4-24 core featuring φ250μm color fiber as optical communication medium. The color fibers are wrapped in a layer of aramid yarn as a force strengthening unit, which is coated with polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH) jacket.

Applications
  • Optical fiber active connection jumper or tail fiber
  • Indoor shaft stage and forced ventilation level wiring
  • Interconnection of instruments and communication equipment
Characteristics
  • Coated fiber is easy to peel off
  • Aramid yarn reinforced element provides excellent tensile resistance
  • Good flame-retardant performance with low induced attenuation within operating temperature range
Optical Parameters and Properties
Flat band Optical Cable 2-24F for Data Centers 0

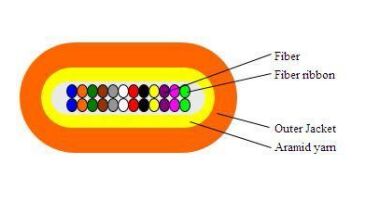

Cable Structure
Flat band Optical Cable 2-24F for Data Centers 1
Specifications

Length of production optical cable: 2000M

Optical cable outer sheath printing specifications, such as: OPTICAL FIBER CABLE 24C 2.7X5.3 SM G652D-9/125um - LSZH - MM/YY 00000MI

Packaging & Delivery
  • Packaging: Wooden Drums Protection. According to customer or our company request.
  • Delivery Length: Standard Reel Length: 0.5-2.0 km or according to customer request.
Cable Marking
  • Cable Marker every Meter by inkjet printing
  • Year of manufacture
  • Type of Cable
  • Number of fiber
  • Cable length
  • Etc.
  • According to customer or our company request
Product Images
Flat band Optical Cable 2-24F for Data Centers 2 Flat band Optical Cable 2-24F for Data Centers 3
Why Choose TAKFLY
  • 26+ years of manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years of experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany-imported Injection Machines and production lines
  • 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
  • Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
  • Raw material spot checking before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks
Delivery Information
  • Samples: 1-3 working days
  • Mass Production Orders: 3-7 working days
  • Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?

Please provide your email or contact information through our website to receive our catalogue and price list.

Q2: Can I negotiate the prices?

Yes, we may consider discounts for multiple container loads of mixed goods.

Q3: How much will the shipping charges be?

Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.

Q4: Can I visit you?

Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.

Q5: What if there is quality problem when we get the goods?

If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.

Q6: What is your terms of packing?

We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.

Q7: What is your terms of payment?

T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.

Q8: What is your terms of delivery?

EXW, FOB, CFR, CIF, DDU

Q9: How about your delivery time?

Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.

Q10: Can you produce according to the samples?

Yes, we can manufacture products based on your samples or technical drawings.

If you're interested in our products or have any questions, feel free to contact us at any time!
