Φ 7.0 MM 2 Core LSZH RRH FIBER OPTIC Break-out Cable
Resumo do Produto
Φ 7.0 MM 2 Core LSZH RRH Fiber Optic Break-out Cable High-performance fiber optic break-out cable designed for reliable data transmission in demanding industrial environments. Applications Optical fiber active connection jumper or tail fiber Indoor shaft stage and forced ventilation level wiring ...
Product Custom Attributes
Nome do produto:
Φ 7,0 MM 2 núcleos LSZH RRH cabo break-out de FIBRA ÓPTICA
Diâmetro do núcleo μm:
9,62,5,50
Diâmetro do revestimento μm:
125± 1,0
Diâmetro do revestimento μm:
245 ± 10
Atenuação (máximo):
850 nm 3,5 、 1300 nm 1,5 、 1310 nm 0,45 、 1550 nm 0,3
Diâmetro do tampão:
850µm±50µm
Contagem de fibras:
2
Material tampão:
LSZH
Diâmetro da jaqueta:
7,0 (0/-0,2) mm
Tensão (Longo Prazo) N:
200
Temperatura de operação C:
-30~+70
Esmagamento (Longo Prazo) N/ 10cm:
1100
Marca de fibra:
Corning, YOFC, OFS, Draka
Destacar:
2 core LSZH fiber optic cable
,7.0mm fiber optic breakout cable
,RRH fiber optic cable with warranty
Propriedades básicas
Lugar de origem:
China, Shenzhen
Marca:
DF/OEM/Nuetral
Certificação:
CE/ROHS/REACH/ISO9001/ISO14001
Número do modelo:
Φ 7,0 MM 2 núcleos LSZH RRH cabo break-out de FIBRA ÓPTICA
Propriedades comerciais
Quantidade de ordem mínima:
Negociável
Preço:
negotiable denpend on QTY
Detalhes da embalagem:
Caixa blister + caixa
Tempo de entrega:
5-9 dias úteis dependendo do QTY
Termos de pagamento:
Western Union, T/T, MoneyGram/Paypal
Habilidade da fonte:
1000pcs/dia
Descrição do produto
Φ 7.0 MM 2 Core LSZH RRH Fiber Optic Break-out Cable
High-performance fiber optic break-out cable designed for reliable data transmission in demanding industrial environments.
Applications
- Optical fiber active connection jumper or tail fiber
- Indoor shaft stage and forced ventilation level wiring
- Interconnection of instruments and communication equipment
Key Features
Protective Coating
Excellent protection and peeling performance
Flame Retardant
Tight sleeve optical fiber with superior flame retardant properties
Precision Engineering
Accurate geometric parameters ensure low welding loss and high efficiency
Technical Parameters
| Item | Unit | Specification |
|---|---|---|
| Core Diameter | μm | 9, 62.5, 50 |
| Cladding Diameter | μm | 125±1.0 |
| Core Non-circularity | % | ≤6.0 |
| Cladding Non-circularity | % | ≤2.0 |
| Core-cladding Concentricity | μm | ≤1.0 |
| Coating Diameter | μm | 245±10 |
| Cladding-coating Concentricity | μm | ≤12.5 |
| Attenuation (max.) | dB/km | 850nm: 3.5, 1300nm: 1.5, 1310nm: 0.45, 1550nm: 0.3 |

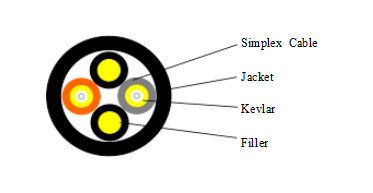

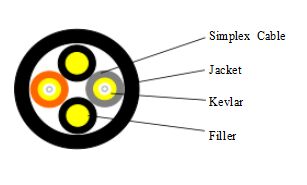

Cable Structure
| Component | Specifications |
|---|---|
| Fiber Count | 2 |
| Buffer | Diameter: 850µm±50µm, Material: LSZH |
| Simplex Cable | Diameter: 2.0mm±0.1mm, Material: LSZH, Color: SM: blue/yellow, MM: Orange/Gray |
| Filler | Diameter: 2.0mm±0.1mm, Material: LSZH, Color: Black |
| Strength Member | Kevlar |
| Jacket | Diameter: 7.0 (0/-0.2) mm, Material: LSZH, Color: Black |
Mechanical and Environmental Characteristics
| Characteristic | Unit | Specification |
|---|---|---|
| Tension (Long Term) | N | 200 |
| Tension (Short Term) | N | 400 |
| Crush (Long Term) | N/10cm | 1100 |
| Crush (Short Term) | N/10cm | 2200 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Installation Temperature | °C | -20 to +60 |
| Operation Temperature | °C | -30 to +70 |
| Storage Temperature | °C | -30 to +70 |
Product Image
Why Choose TAKFLY?
Professional Manufacturer
- 25+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers
- 16 sets of Germany imported injection machines and production lines
- 30+ sets of testing equipment including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding available
- Global exhibition participation: OFC, ECOC, CommunicAsia, and more
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Final spot check before shipping
Delivery & Packaging
- Samples: 1-3 working days
- Mass production: 3-7 working days
- Packaging options: Plastic Bag, Carton, and Pallet available
