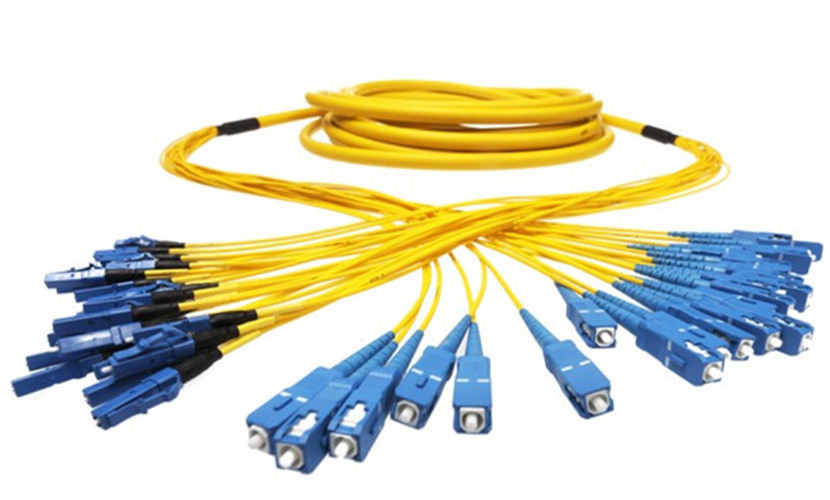

SC-LC Breakout LSZH Fiber Optic Patchcord 12 Cores
Detalhes do produto:
| Lugar de origem: | Shenzhen da China |
| Certificação: | CE, ISO, RoHS, GS |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 |
|---|---|
| Preço: | 3 |
|
Informação detalhada |
|||
| Pressão lateral permitida: | 100 (N/100mm) | Força de tração permitida: | <100n |
|---|---|---|---|
| essencial: | Simplex, duplex, quard, 12 núcleos | Material de bainha: | PVC, LSZH, OFNP |
| Estrutura de conexão: | SC/LC/FC/ST/MU/MTRJ/MPO/E2000 | Forma de material: | Cabo de ruptura |
| Perda de inserção: | ≤0,3 dB (típico) | Perda de retorno: | ≥45 dB |
| Comprimento de onda operacional: | 1310, 1510 nm | Trocabilidade: | ≤0,2 dB |
| Vibração: | ≤0,2 dB | Temperatura operacional: | -40~75 graus |
| Temperatura de armazenamento: | -45 ~ 85 graus | Diâmetro do cordão: | φ3.0, φ2.0, φ0,9 mm |
| Contagem de fibras: | 4, 6, 8, 12, 24 fibras | ||
| Destacar: | LSZH fiber optic patchcord,12-core breakout fiber cable,SC-LC fiber optic patchcord |
||
Descrição de produto
Fiber Breakout patch cords consist of multiple fiber cables bundled together, designed for conduit runs, riser and plenum applications. Each fiber is individually reinforced for easy separation into individual lines. Takfly provides high-quality Multi-purpose Breakout patch cords that simplify fiber-optic connector installation. The ruggedized fiber subunits offer protection in demanding environments outside patch panels or ODFs. Available in 2, 4, 6, 8, 12, 24, and 48 fiber configurations.
- Fiber options: 4, 6, 8, 12, 24, 48 fibers
- Includes heat shrinkable tube
- Compatible connectors: FC, SC, ST, LC
- Cable materials: PVC, OM1, OM2, OM3 options
- Single mode or multi mode available
- Cable sizes: Φ0.9mm, Φ2.0mm, Φ3.0mm
- Test equipment
- Optical CATV & LAN
- Telecommunication networks
- Optical communication networks
| Parameter | Unit | SM | PC | UPC | APC |
|---|---|---|---|---|---|
| Insertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | |
| Return loss | dB | ≥45 | ≥50 | ≥60 | |
| Operating wavelength | nm | 1310, 1510 | |||
| Exchangeability | dB | ≤0.2 | |||
| Vibration | dB | ≤0.2 | |||
| Operating temperature | °C | -40~75 | |||
| Storage temperature | °C | -45~85 | |||
| Cord diameter | mm | φ3.0, φ2.0, φ0.9 | |||
| Fiber count | F | 4, 6, 8, 12, 24 fibers | |||
| Applicable connector | FC, SC, ST, MU, LC |
