SC Duplex OM1 62.5/125um Fiber Optic Patch Cord 3mm PVC
Detalhes do produto:
| Certificação: | RoHS, CE, ISO9001, VDE, CCC |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 |
|---|---|
| Preço: | 0.56 |
|
Informação detalhada |
|||
| Estrutura de conexão: | 12cores Jumper de fibra | Forma de material: | Fio redondo |
|---|---|---|---|
| Pressão lateral permitida: | 100 (N/100mm) <1000 (N/100mm) | Força de tração permitida: | 100n <1000n |
| Material de bainha: | PVC | Tipo de conector: | SC, FC, ST, LC, MTRJ, MPO, MTP, MU, SMA, ECT |
| Cor da jaqueta a cabo: | Amarelo, azul, verde, aqua, vermelho, magenta, bege | Diâmetro externo do cabo: | 0,9 mm, 1,6 mm, 1,8 mm, 2,0 mm, 2,4 mm, 2,8 mm, 3,0 mm |
| MPO MTP Polimento: | PC, UPC, APC | Tipo de fibra: | OS1, OS2, OM1, OM2, OM3, OM4 |
| Material da jaqueta a cabo: | PVC, LSZH, OFNP, PE | Núcleos de fibra: | Sx, dx, 4 ~ 144 núcleos multi-fibras |
| Perda de retorno: | PC> 30dB; APC> 50DB | Perda de inserção: | <0> |
| Temperatura operacional: | -45 a +85 graus | ||
| Destacar: | SC Duplex OM1 fiber optic cable,62.5/125um fiber patch cord,3mm PVC fiber optic cable |
||
Descrição de produto
SC Multimode OM1 62.5/125um Duplex Fiber Optic Patch Cord
The SC Multimode OM1 62.5/125um Duplex Fiber Optic Patch Cord provides quick and easy fiber termination in the field. Available for 900 micron applications, this solution enables installers to terminate and make connections in minutes at equipment and fiber patch panels. Our quick connector system eliminates the need for epoxy, adhesives, or costly curing ovens. All key manufacturing steps are completed in the factory to ensure excellent connection quality at a competitive price.
Key Features
- Low insertion loss
- High return loss (low reflection at interface)
- Easy installation process
- Cost-effective solution
- High reliability
- Low environmental sensitivity
- User-friendly design
Applications
- CATV systems
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installation
- Wide Area Networks (WANs)
Technical Specifications
| Parameter | Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|---|
| Insertion loss | ≤ 0.2db | ≤ 0.2db | ≤ 0.25db |
| Return loss | ≥55db | ≥65db | ≥30db |
| Durability | ≤ 0.1db typical change, 1000 times mating | ||
| Operating Temperature | -45 to +85°C | ||
Ferrule Hole Sizes
| Type | Singlemode (UPC/APC) | Multimode |
|---|---|---|
| Size 1 | 125.0+1/-0um, Concentricity: ≤1.0um (UPC) 125.0+1/-0um, Concentricity: ≤0.5um (APC) |
125.0um, Concentricity: ≤3.0um |
| Size 2 | 125.3+1/-0um, Concentricity: ≤1.0um (UPC) 125.3+1/-0um, Concentricity: ≤0.5um (APC) |
127.0um, Concentricity: ≤3.0um |
| Size 3 | 125.5+1/-0um, Concentricity: ≤1.0um (UPC) 125.5+1/-0um, Concentricity: ≤0.5um (APC) |
128.0um, Concentricity: ≤3.0um |
| Size 4 | 126.0+1/-0um, Concentricity: ≤1.0um (UPC) 126.0+1/-0um, Concentricity: ≤0.5um (APC) |
- |
Product Connector Options
| Item | Connector Description | Item | Connector Description |
|---|---|---|---|
| PC/UPC/APC | PC/UPC/APC | ||
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
| DIN | E2000 | ||
| E2000 |

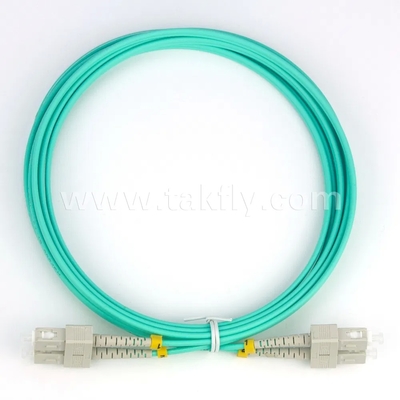

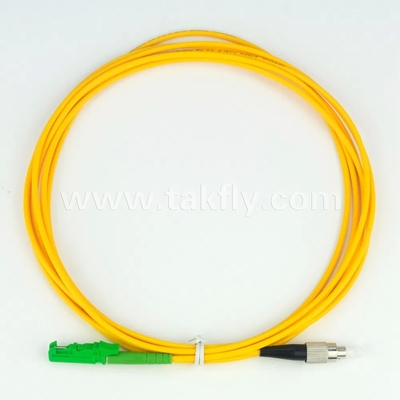

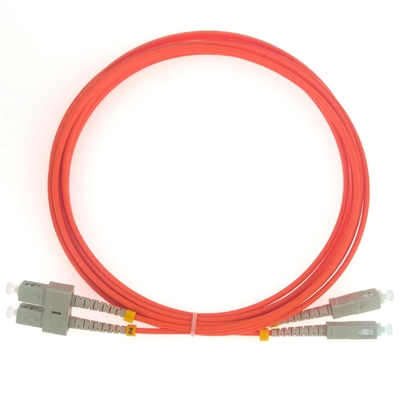

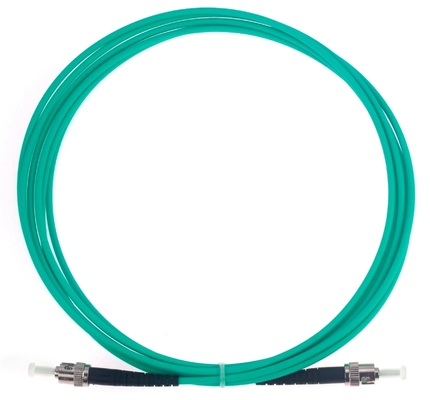

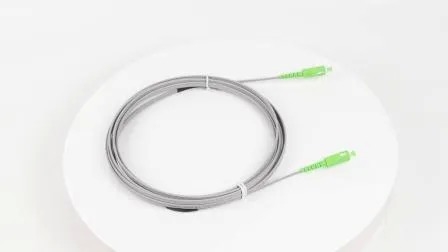

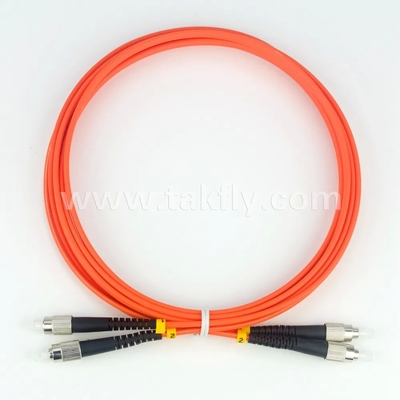

Product Images
