Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
Resumo do Produto
O cabo óptico externo GYTS + 2 * 4 mm² integra 12 fibras com 2 fios de alimentação. Apresenta design de bloqueio de água, durabilidade mecânica e transmissão simultânea de dados/energia. Ideal para redes de telecomunicações, FTTH e projetos de monitoramento com comprimentos personalizados disponíveis.
Atributos personalizados do produto
Nome do produto:
Cabo óptico externo GYTS+2*4mm² fio de aço 12F
Contagem de fibras:
12
Revestimentos:
125μm
Revestimento (±5µm):
250 μm
Diâmetro do tubo solto (mm):
2 mm
Material de tubo solto:
PBT/PP
Membro de força Reforço central:
Fios de aço/fios de aço com revestimento em PE
Material da bainha:
MDPE/HDPE
Cor:
Preto
Peso do cabo (kg/km):
360
Temperatura de operação:
-20℃~70℃
Marca de fibra:
Corning, YOFC, OFS, Draka
Destacar:
Outdoor GYTS fiber optic cable
,12F steel wire optical cable
,4mm² armored fiber cable
Propriedades Básicas
Lugar de origem:
China, Shenzhen
Marca:
DF/OEM/Nuetral
Certificação:
CE/ROHS/REACH/ISO9001/ISO14001
Número do modelo:
Cabo óptico externo GYTS+2*4mm² fio de aço 12F
Propriedades comerciais
Quantidade de ordem mínima:
Negociável
Preço:
negotiable denpend on QTY
Detalhes da embalagem:
Caixa blister + caixa
Tempo de entrega:
5-9 dias úteis dependendo do QTY
Termos de pagamento:
Western Union, T/T, MoneyGram/Paypal
Habilidade da fonte:
1000 unidades/dia
Descrição do Produto
Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.
The cable core is FRP or metallic strength member( some structures need add PE as bedding layer in the strength member). Electric wires and tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. After two sides PSP are longitudinally applied over the inner sheath ,the cable is completed with PE or LSZH outer sheath.
Outdoor GYTS+2*4mm² Optical Cable Applications
-
Telecommunications network;
-
Construction of communication base stations in villages, remote areas in cities and towns ;
-
Residential areas and buildings FTTH;
-
Security monitoring project;
-
Others occasion which information together with electric power at the same time.
Outdoor GYTS+2*4mm² Optical Cable Features
-
Good mechanical and temperature performance;
-
Opto and electricity integrated, fully save pipeline resources;
-
Electric and optical cable maintain relatively independent structure, easy to import; export and link when installation;
-
Electricity lines, telephone lines, television lines, network lines, monitor lines and data lines are multi-one network, saves costs;
-
Larger operating temperature range;
-
Larger construction temperature range;
-
Cable diameter and bending radius are small, freely install in small space and compatible with optical signal and electric energy transmission.
Outdoor GYTS+2*4mm² Optical Cable Parameter and Properties
| Optical fiber type | G.652D | G.655 | 50/125um | 62.5/125um | |
|
Attenuation |
@850nm |
... |
... |
≤3.5 dB/km |
≤3.5 dB/km |
|
@1300nm |
... |
... |
≤1.5 dB/km |
≤1.5 dB/km |
|
|
@1310nm |
≤0.36 dB/km | ≤0.40 dB/km |
... |
... |
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
... |
... |
|
|
Bandwidth |
@850nm |
... |
... |
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
... |
... |
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
... |
... |
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelengthλcc |
≤1260nm |
≤1480nm |
... |
... |
|

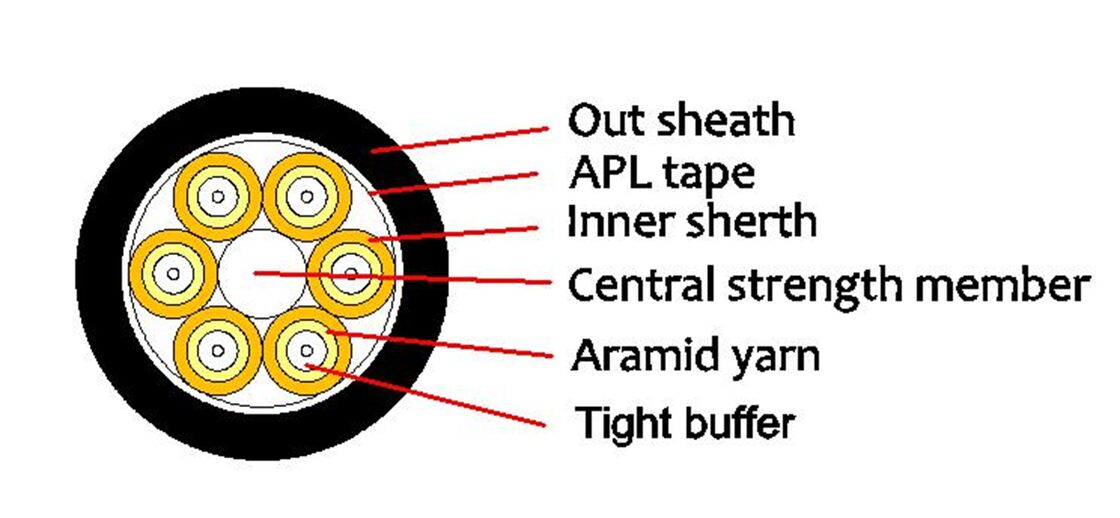

Outdoor GYTS+2*4mm² Optical Cable Structure
Other Requirements
Length of production optical cable:2000M
Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GYTS-12B1.3+2*4MM 12.5 MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
